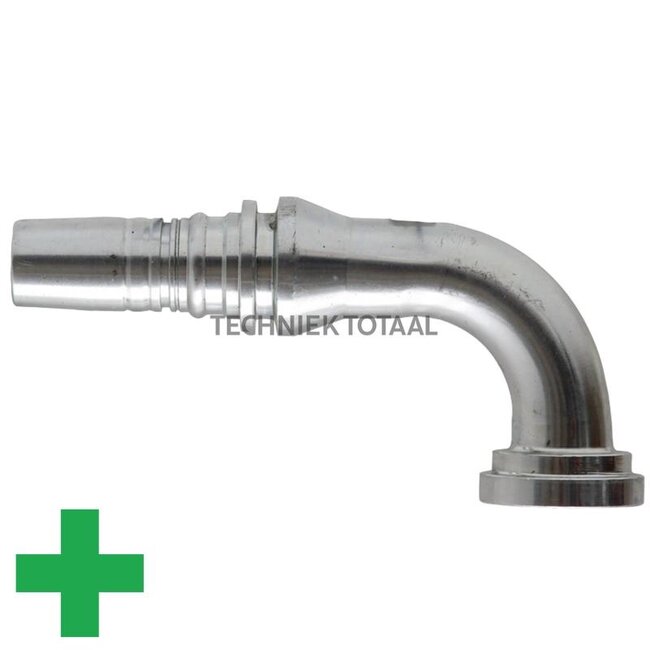

Manuli Swage fitting Interlock light SAE flange 1 1/4", 90°, DN 25

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43390-16-20

Technical data:

• Comparison no.: M43390-16-20
• B (mm): 26.0
• Nominal width: DN 25 - 1"
• Type formula: SFL 90°
• D (mm): 51.0
• A (mm): 83.4
• Flange: 1 1/4”
• D (inches): 1 1/4”
• E (mm): 62.0
• O-ring: 37.7 x 3.5
• Series: 3000 PSI
• Description: SAE flange, light, 90°
