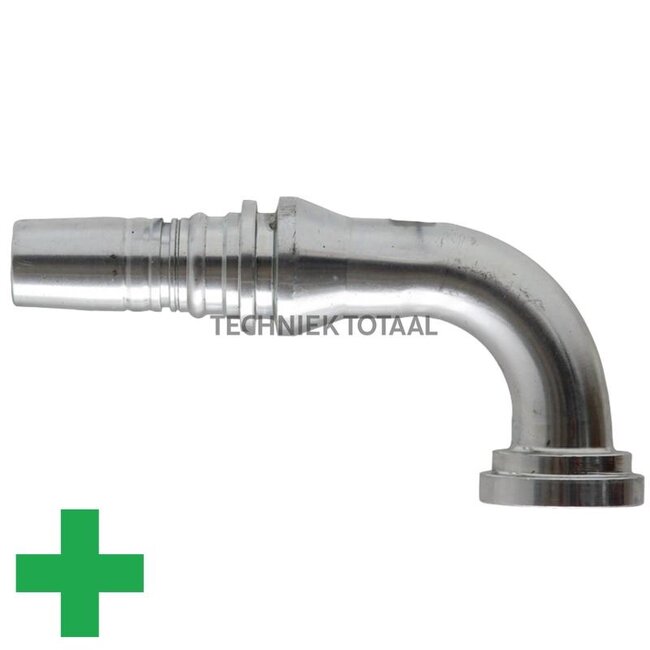

Manuli Swage fitting Interlock light SAE flange 1", 90° long, DN 25

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M43390-16-16100

Technical data:

• D (mm): 44.5
• Nominal width: DN 25 - 1"
• O-ring: 32.9 x 3.5
• Type formula: SFL 90°
• Comparison no.: M43390-16-16100
• Flange: 1"
• E (mm): 100
• D (inches): 1"
• B (mm): 20
• Description: SAE flange, light, 90°
• Series: 3000 PSI
• A (mm): 83.5
