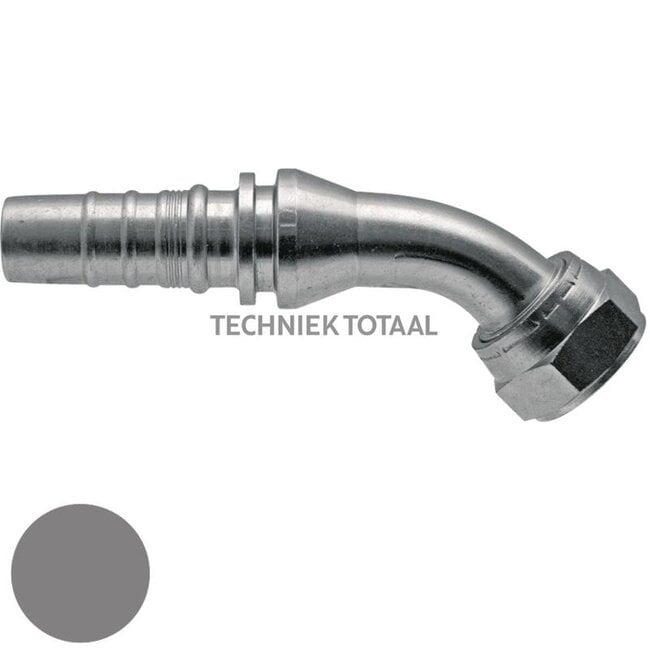

Manuli Swage fitting Interlock ORFS swivel nut 1 7/16", 45°, DN 25

Swage fitting INTERLOCK / INTERLOCK PLUS

Replaces: M42441-16-16

Technical data:

• Nominal width: DN 25 - 1"
• B (mm): 19.5
• Thread: 1 7/16" - 12
• C (mm): 15.0
• E (mm): 22.0
• A (mm): 84.0
• Comparison no.: M42441-16-16
• H2 (mm): 41
