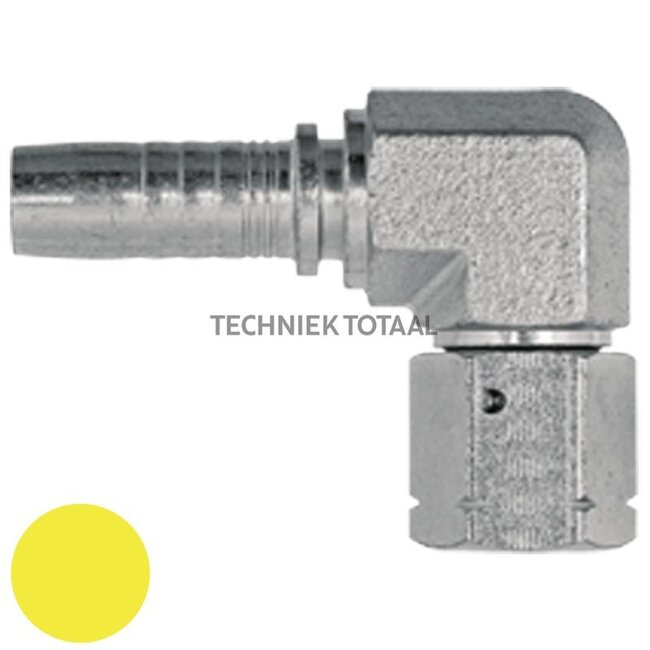

Manuli Swage fitting Multi Fit JIC cone 3/4", 90° compact, DN 12

Swaged hosetail MANULI

Replaces: M22582-08-08F

Technical data:

• Type formula: DKJ
• Comparison no.: M22582-08-08F
• Thread: 3/4" - 16
• E (mm): 28
• H2 (mm): 22
• H1 (mm): 22
• Description: Dichtkegel JIC
• B (mm): 9.3
• C (mm): 10.2
• A (mm): 24.9
• T: 3/4" - 16
• Nominal width: DN 12 - 1/2"
