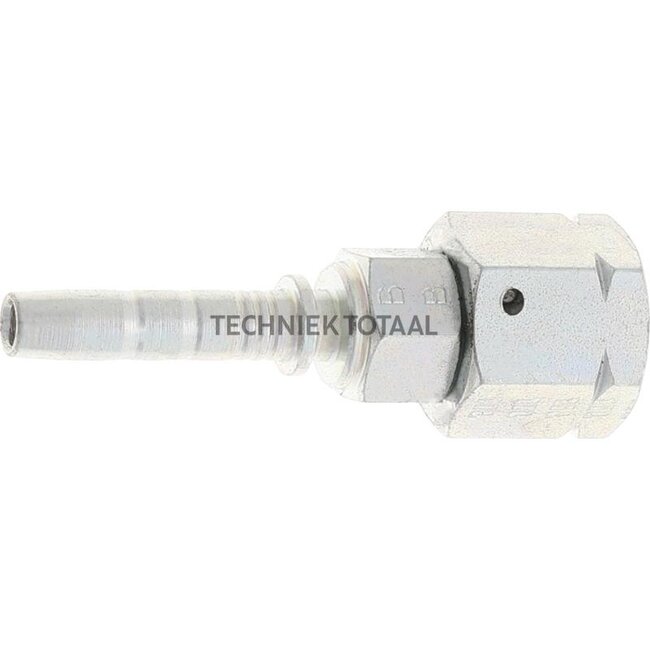

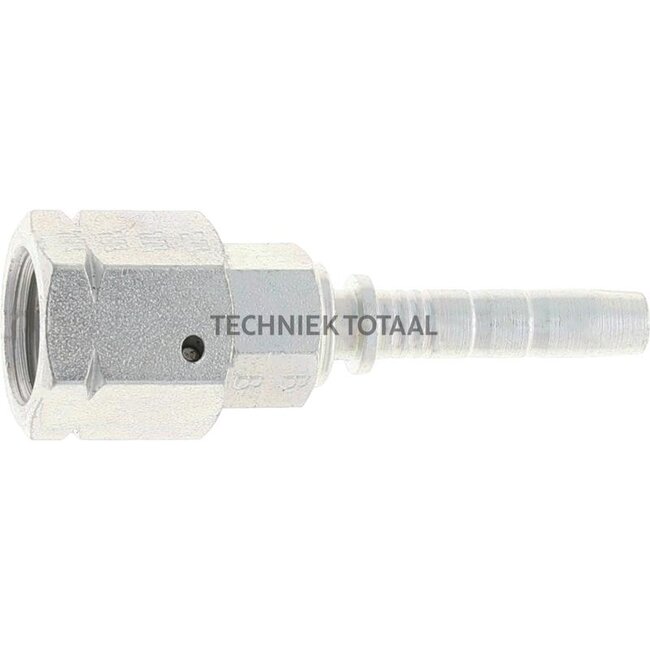

Manuli Swage fitting Multi Fit JIC cone DKJ-KM 9/16", DN 06

MULTIFIT swage fitting

Replaces: M22712-04-06

Technical data:

• C (mm): 9.2
• Description: JIC sealing taper
• T: 9/16” - 18
• Comparison no.: M22712-04-06
• A (mm): 24
• Nominal width: DN 06 - 1/4"
• H2 (mm): 19.0
• Type formula: DKJ
• B (mm): 7
• Thread: 9/16" - 18 UNF
• H1 (mm): 14.0
