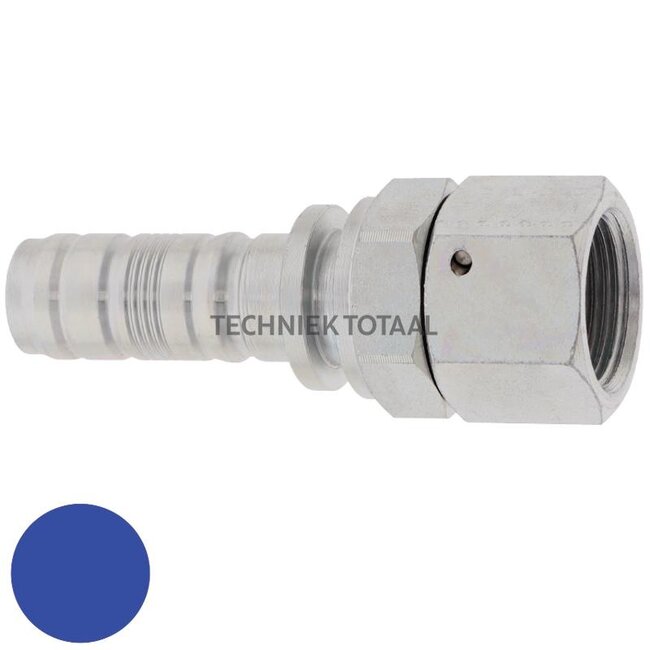

Manuli Swage fitting Spiralfit BSP cone 1 1/4", DN 38

Swage fitting SPIRALFIT

Replaces: I.S38WFR11/4, M80812-24-20

Technical data:

• T: 1.1/4" - 11
• Nominal width: DN 38 - 1 1/2"
• B (mm): 26.1
• H2 (mm): 50.0
• H1 (mm): 55.0
• Comparison no.: I.S38WFR11/4
• C (mm): 10.5
• A (mm): 52.0
