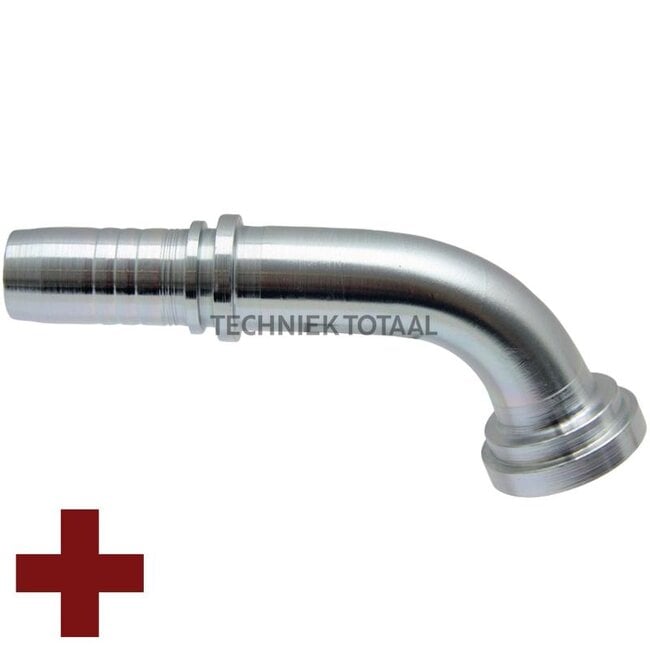

Manuli Swage fitting Spiralfit CAT SAE flange 1", 67.5°, DN 25

Swage fitting SPIRALFIT

Replaces: M83971-16-16

Technical data:

• Comparison no.: M83971-16-16
• Nominal width: DN 25 - 1"
• Flange: 1"
• Description: SAE flange, heavy, 67.5°
• Series: 9000 PSI
• A (mm): 107
• D (inches): 1"
• E (mm): 58
• B (mm): 19.5
• Type formula: SFS 67.5°
• D (mm): 47.7
• S (mm): 14.3
