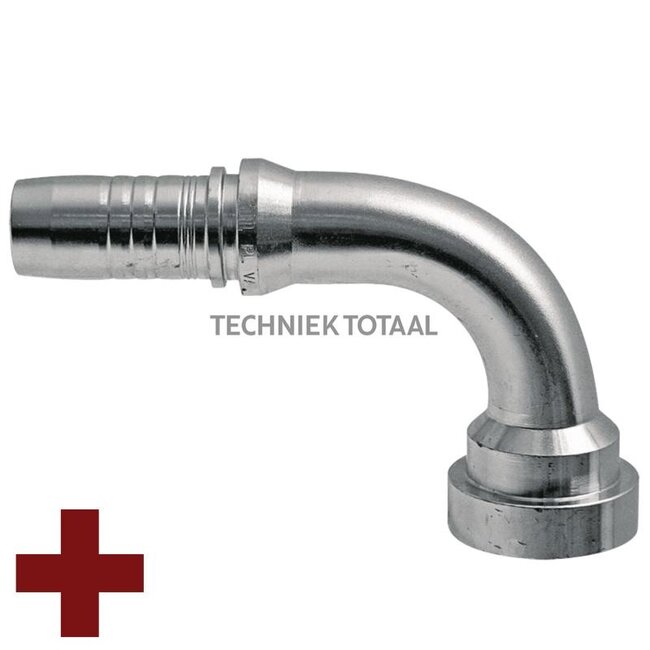

Manuli Swage fitting Spiralfit CAT SAE flange 1", 90°, DN 25

Swage fitting SPIRALFIT

Replaces: M83991-16-16

Technical data:

• Series: 9000 PSI
• D (mm): 47.7
• E (mm): 73.5
• S (mm): 14.3
• Type formula: SFS 90°
• Flange: 1"
• D (inches): 1"
• B (mm): 19.5
• Description: SAE flange, heavy, 90°
• Nominal width: DN 25 - 1"
• Comparison no.: M83991-16-16
• A (mm): 82
