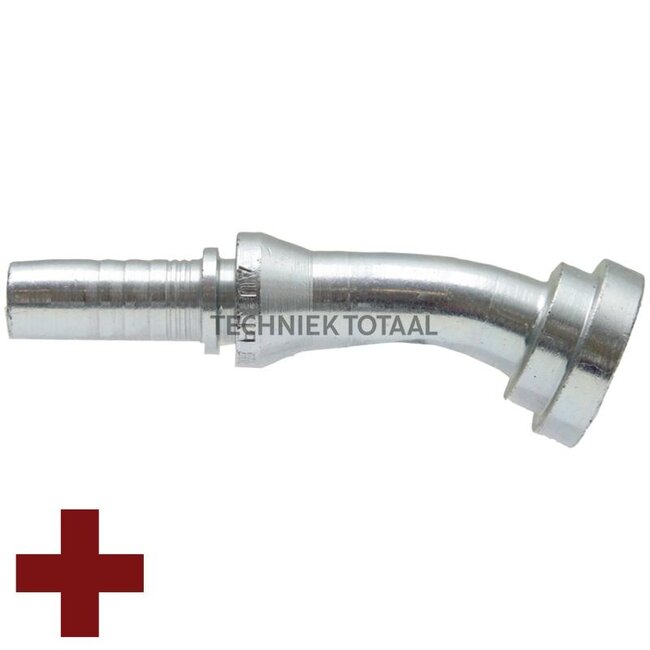

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/2", 22°, DN 38

Swage fitting SPIRALFIT

Replaces: M83921-24-24

Technical data:

• Comparison no.: M83921-24-24
• D (mm): 63.7
• Series: 9000 PSI
• Nominal width: DN 38 - 1 1/2"
• A (mm): 123.5
• Flange: 1 1/2”
• E (mm): 20
• Type formula: SFS 22°
• S (mm): 14.3
• Description: SAE flange, heavy, 22°
• D (inches): 1 1/2”
• B (mm): 32
