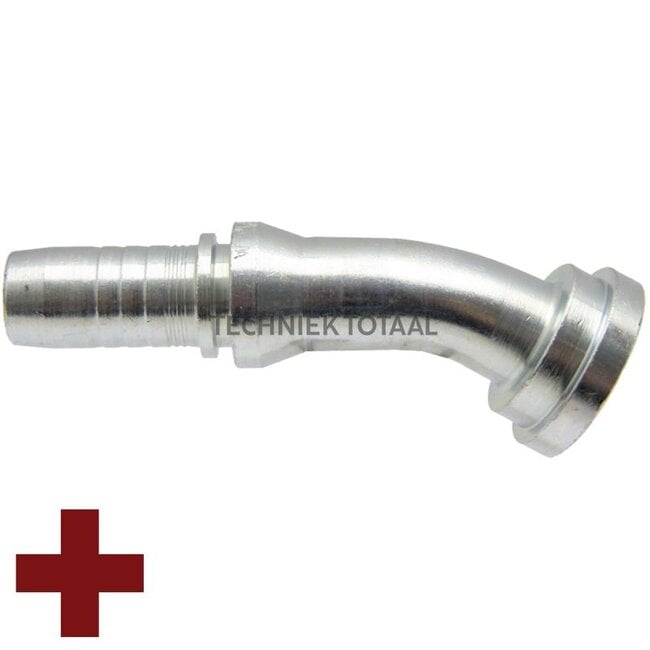

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/2", 30°, DN 38

Swage fitting SPIRALFIT

Replaces: M83931-24-24

Technical data:

• B (mm): 32
• Type formula: SFS 30°
• Flange: 1 1/2”
• Comparison no.: M83931-24-24
• A (mm): 120.5
• S (mm): 14.3
• D (inches): 1 1/2”
• Nominal width: DN 38 - 1 1/2"
• D (mm): 63.7
• Series: 9000 PSI
• Description: SAE flange, heavy, 30°
• E (mm): 28
