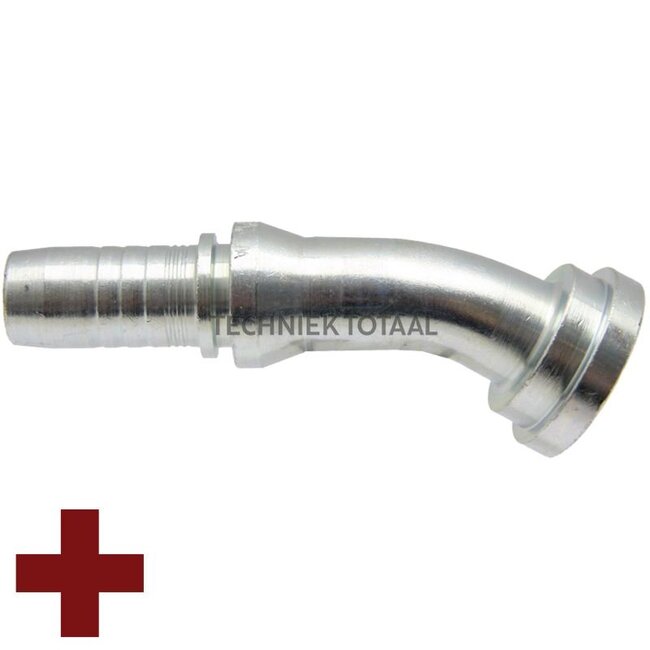

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/4", 45°, DN 25

Swage fitting SPIRALFIT

Replaces: M83941-16-20

Technical data:

• Description: SAE flange, heavy, 45°
• D (mm): 54
• Flange: 1 1/4”
• E (mm): 40.5
• D (inches): 1 1/4”
• A (mm): 101
• B (mm): 26
• Type formula: SFS 45°
• Comparison no.: M83941-16-20
• Series: 9000 PSI
• S (mm): 14.3
• Nominal width: DN 25 - 1"
