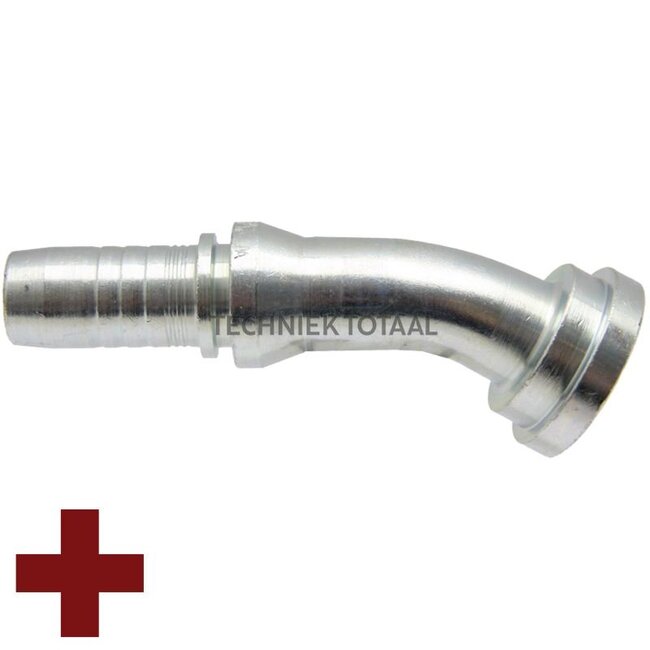

Manuli Swage fitting Spiralfit CAT SAE flange 1 1/4", 45°, DN 32

Swage fitting SPIRALFIT

Replaces: M83941-20-20

Technical data:

• Flange: 1 1/4”
• Series: 9000 PSI
• A (mm): 109
• Nominal width: DN 32 - 1 1/4"
• D (inches): 1 1/4”
• D (mm): 54
• E (mm): 40
• B (mm): 26
• Type formula: SFS 45°
• Description: SAE flange, heavy, 45°
• Comparison no.: M83941-20-20
• S (mm): 14.3
