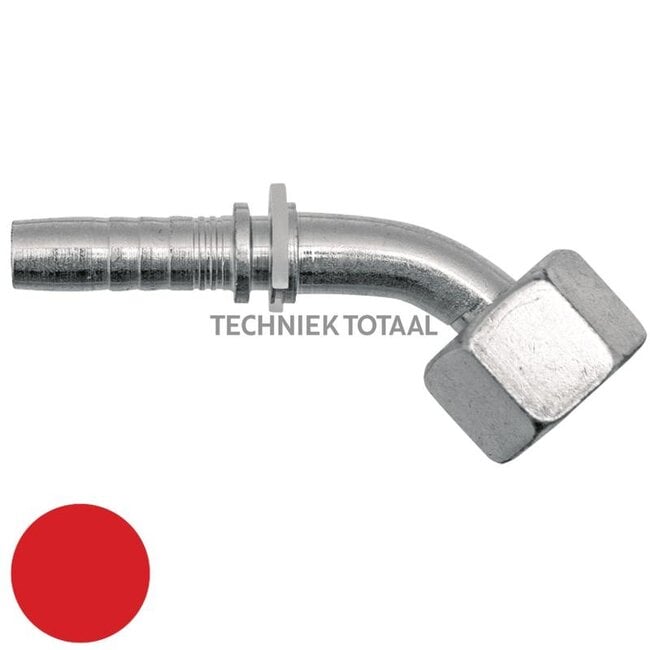

Manuli Swage fitting Spiralfit heavy cone with O-ring M36 x 2, 45°, DN 16

Pressnippel SPIRALFIT

Replaces: M81643-10-36

Technical data:

• T: M36 x 2
• A (mm): 74.5
• B (mm): 16
• C (mm): 3.4
• Nominal width: DN 16 (5/8")
• Comparison no.: M81643-10-36
• H2 (mm): 41
• Pipe (mm): 25
• E (mm): 30.5
