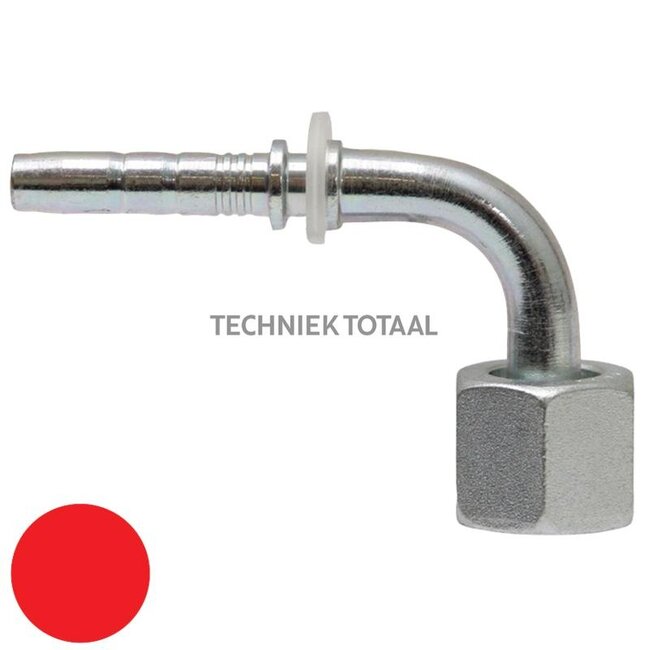

Manuli Swage fitting Spiralfit heavy cone with O-ring M24 x 1.5, 90°, DN 16

Pressnippel SPIRALFIT

Replaces: M81692-10-24

Technical data:

• Comparison no.: M81692-10-24
• B (mm): 9.3
• T: M24 x 1.5
• Pipe (mm): 16
• C (mm): 4.0
• H2 (mm): 30.0
• Nominal width: DN16 - 5/8"
• E (mm): 58.5
• A (mm): 57.0
