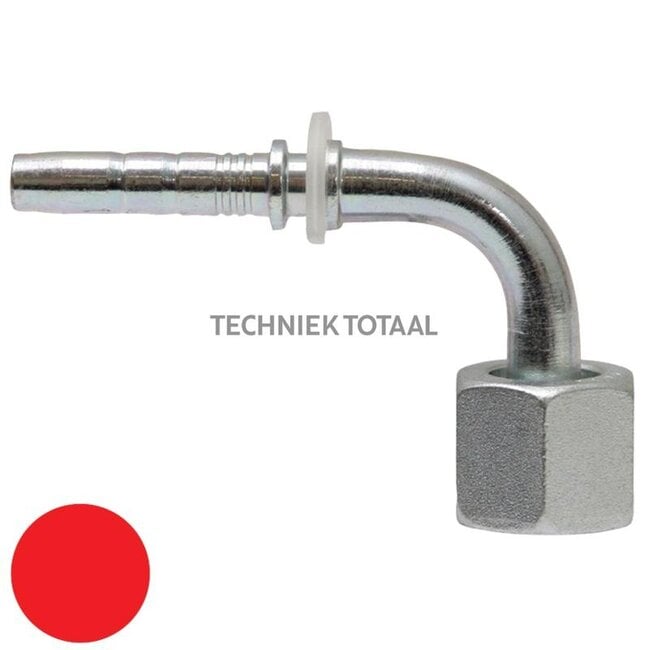

Manuli Swage fitting Spiralfit heavy cone with O-ring M52 x 2, 90°, DN 32

Swage fitting SPIRALFIT

Replaces: M81693-20-52

Technical data:

• T: M52 x 2
• Comparison no.: M81693-20-52
• H2 (mm): 60
• E (mm): 86.5
• A (mm): 101
• Nominal width: DN 32 - 1 1/4"
• B (mm): 26.1
• Pipe (mm): 38
• C (mm): 8
