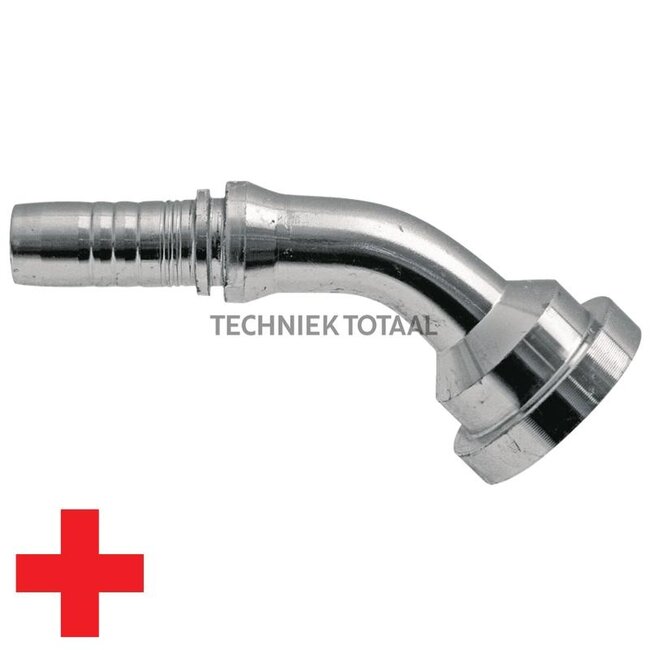

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/2", 45°, DN 32

Swage fitting SPIRALFIT

Replaces: M83641-20-24

Technical data:

• D (mm): 63.7
• D (inches): 1 1/2”
• E (mm): 44.5
• Type formula: SFS 45°
• Description: SAE flange, heavy, 45°
• Series: 6000 PSI
• Comparison no.: M83641-20-24
• A (mm): 104.5
• Nominal width: DN 32 - 1 1/4"
• B (mm): 32
• Flange: 1 1/2”
