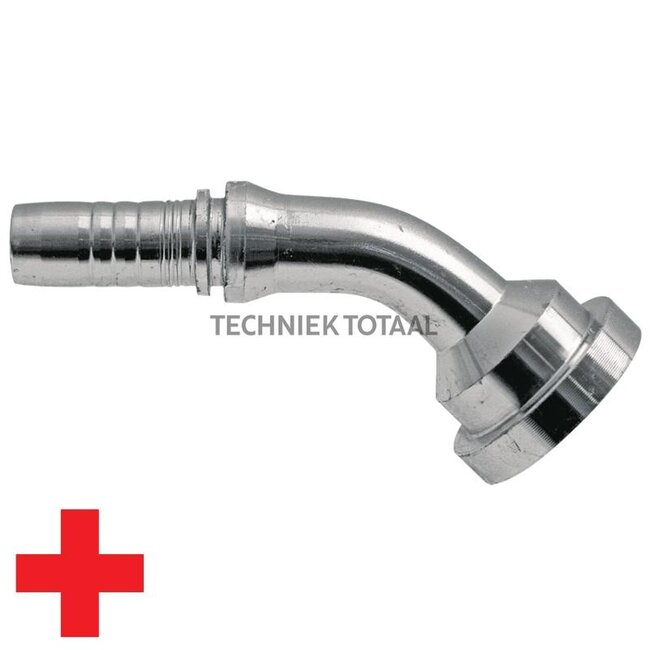

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/4", 45°, DN 32

Swage fitting SPIRALFIT

Replaces: M83641-20-20

Technical data:

• Type formula: SFS 45°
• Series: 6000 PSI
• Description: SAE flange, heavy, 45°
• A (mm): 96.5
• D (inches): 1 1/4”
• D (mm): 54.2
• Flange: 1 1/4”
• B (mm): 26
• E (mm): 38
• Nominal width: DN 32 - 1 1/4"
• Comparison no.: M83641-20-20
