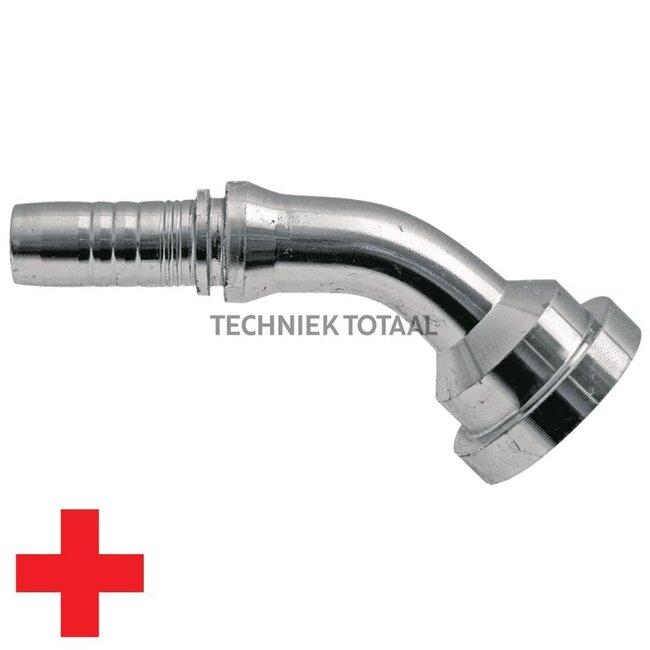

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/2", 45°, DN 38

Swage fitting SPIRALFIT

Replaces: M83641-24-24

Technical data:

• Flange: 1 1/2”
• Description: SAE flange, heavy, 45°
• E (mm): 44
• B (mm): 32
• D (mm): 63.7
• Type formula: SFS 45°
• Series: 6000 PSI
• Nominal width: DN 38 - 1 1/2"
• D (inches): 1 1/2”
• Comparison no.: M83641-24-24
• A (mm): 109.5
