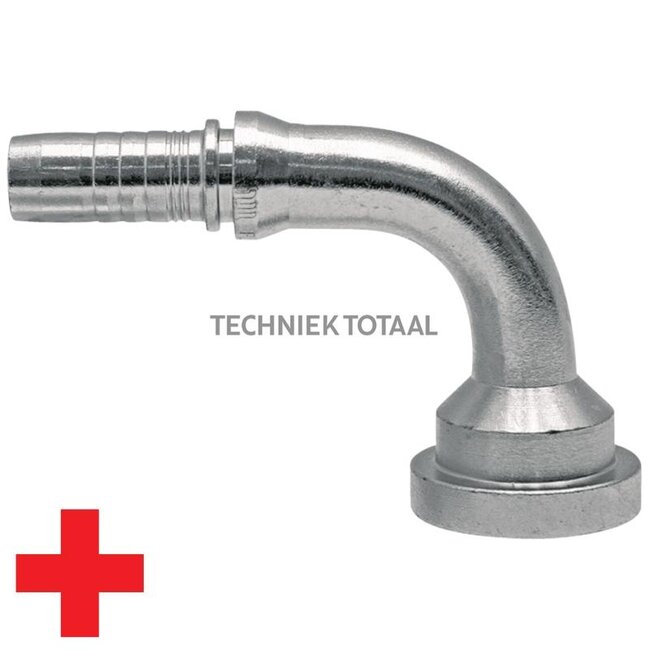

Manuli Swage fitting Spiralfit heavy SAE flange 1 1/4", 90°, DN 38

Swage fitting SPIRALFIT

Replaces: M83691-24-20

Technical data:

• Description: SAE flange, heavy, 90°
• Comparison no.: M83691-24-20
• D (inches): 1 1/4”
• Type formula: SFS 90°
• B (mm): 26
• Flange: 1 1/4”
• Series: 6000 PSI
• D (mm): 54.2
• E (mm): 90
• A (mm): 99
• Nominal width: DN 38 - 1 1/2"
