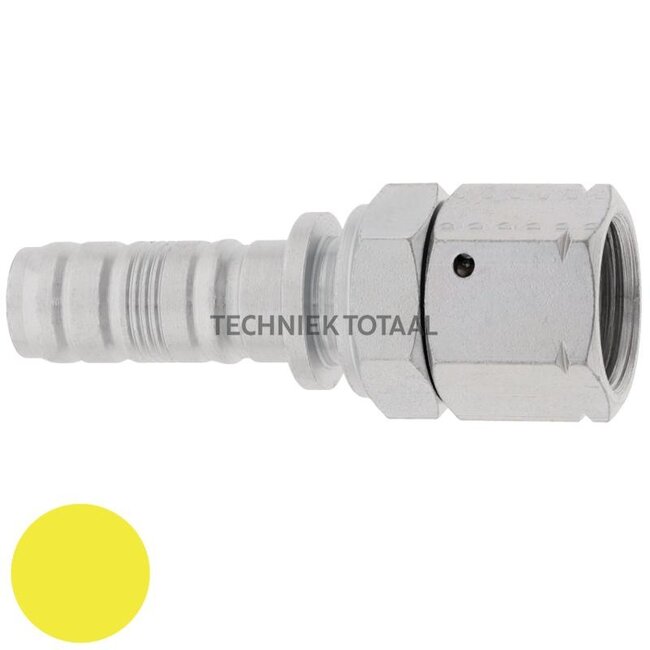

Manuli Swage fitting Spiralfit JIC cone 1 7/8", DN 38

Swage fitting SPIRALFIT

Replaces: M82712-24-24

Technical data:

• Nominal width: DN 38 - 1 1/2"
• H2 (mm): 60
• C (mm): 18.8
• B (mm): 32.1
• H1 (mm): 55
• Comparison no.: M82712-24-24,
• T: 1.7/8" - 12
• A (mm): 54.5
