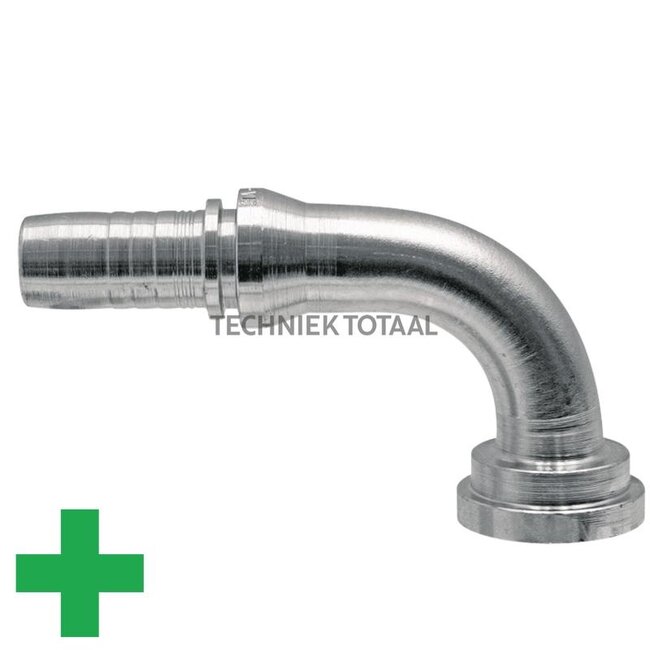

Manuli Swage fitting Spiralfit light SAE flange 3/4", 90°, DN 25

Swage fitting SPIRALFIT

Replaces: M83391-16-12

Technical data:

• Description: SAE flange, light, 90°
• Nominal width: DN 25 - 1"
• Flange: 3/4”
• B (mm): 16
• Comparison no.: M83391-16-12
• Series: 3000 PSI
• A (mm): 85
• D (inches): 3/4”
• Type formula: SFL 90°
• E (mm): 58
• D (mm): 38
