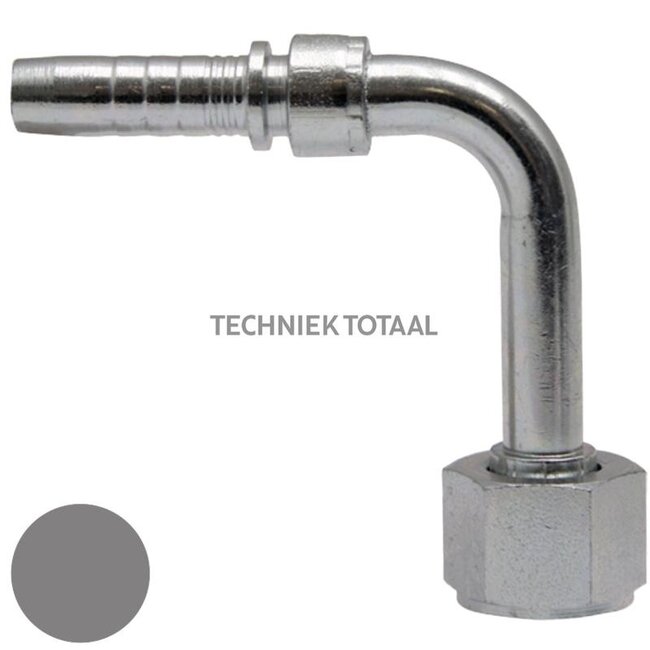

Manuli Swage fitting Spiralfit ORFS swivel nut 1 3/16", 90° L, DN 19

Swage fitting SPIRALFIT

Replaces: M84492-12-12

Technical data:

• A (mm): 73.5
• T: 1.3/16" - 12
• B (mm): 14.5
• Nominal width: DN 19 - 3/4"
• E (mm): 96
• Comparison no.: M84492-12-12
• C (mm): 14.1
• H2 (mm): 36
