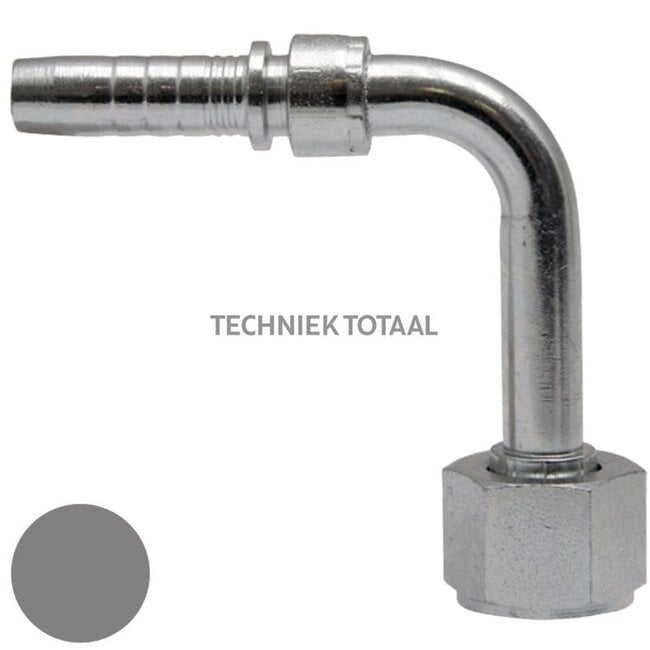

Manuli Swage fitting Spiralfit ORFS swivel nut 1 7/16", 90° L, DN 25

Swage fitting SPIRALFIT

Replaces: M84492-16-16

Technical data:

• C (mm): 15
• A (mm): 83
• E (mm): 114
• T: 1.7/16" - 12
• Nominal width: DN 25 - 1"
• Comparison no.: M84492-16-16
• B (mm): 19.5
• H2 (mm): 46
