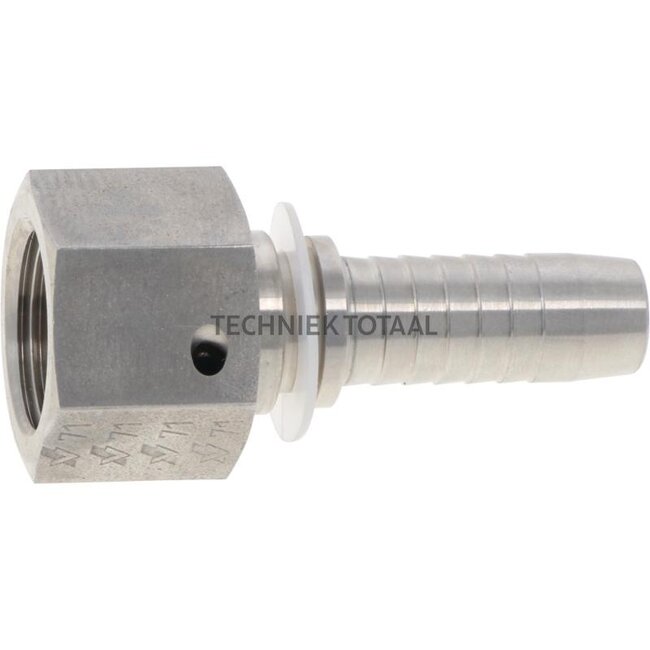

Swage fitting stainless DKR BSP 1/4", DN 06

Swaged hosetail stainless

Replaces: 200667, DKR-1/4"-DN 06

Technical data:

• B (mm): 4.5
• Hose: DN06- 1/4"
• Thread: 1/4"
• Height (mm): 500
• A (mm): 23
• Additional information: Replacement/addition of gas pressure dampers: 50N are recommended for the downward opening, 200N for the upward opening.
• Body: Stainless steel, matte
• Opening: variable
• H2 (mm): 17
• Cover: Stainless steel, polished
• Material thickness (mm): 1.5
• Tube Ø (mm): 8
• T: 1/4"
• Width (mm): 800
• C (mm): 5.4
• S1 (mm): 17
• Depth (mm): 500
• Lock: 1 x Euroinox - bolt lock stainless steel lockable
• Ø D2 (mm): 4.5
• L1 (mm): 21
• Nominal width: DN 06 - 1/4"
