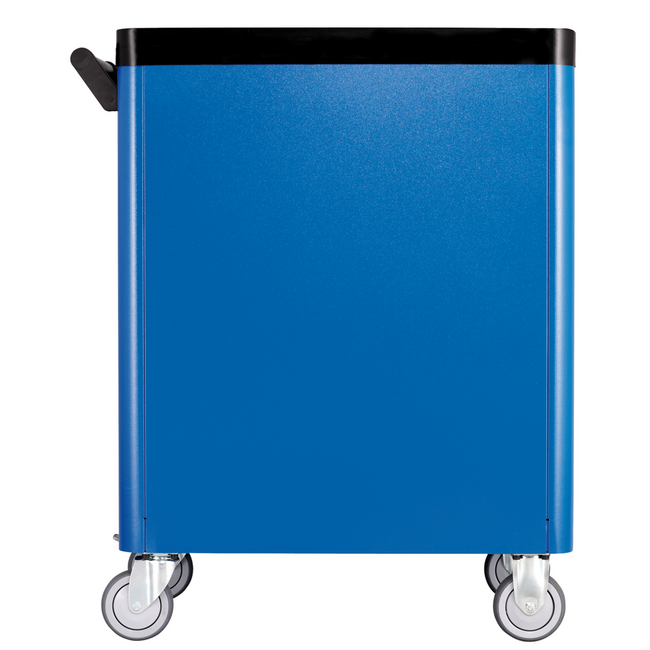

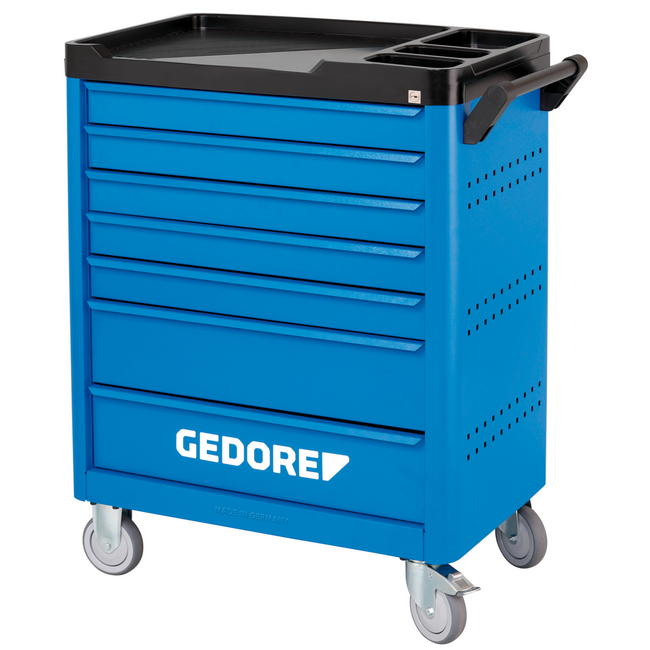

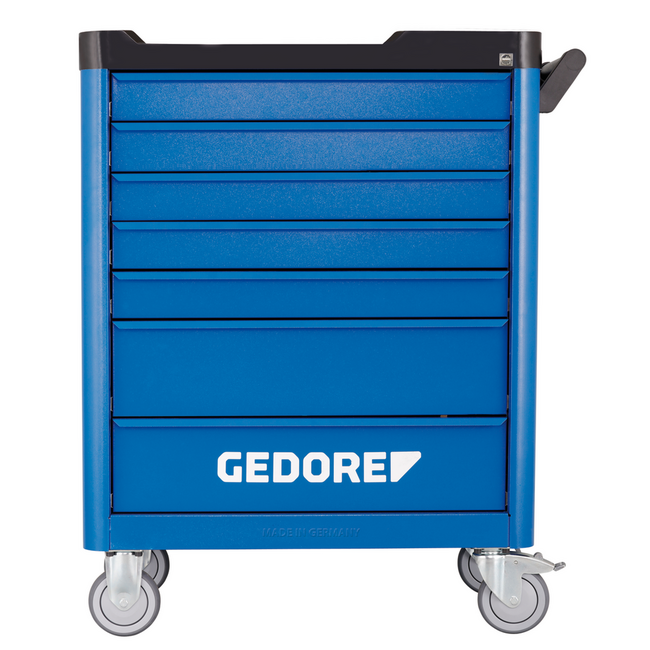

Empty tool cart made of powder-coated sheet steel with 7 full-extension drawers of 640 x 400 mm, single-drawer interlock, cylinder lock and side panels with euro perforation.
- Body: Dimensions:H 1045 x B 870 x T 505 mm
- Working platform with cover made of ABS plastic with front flattening and anti-roll edge, as well as small additional storage compartments
- Maneuverable and easy to control thanks to the steering handle

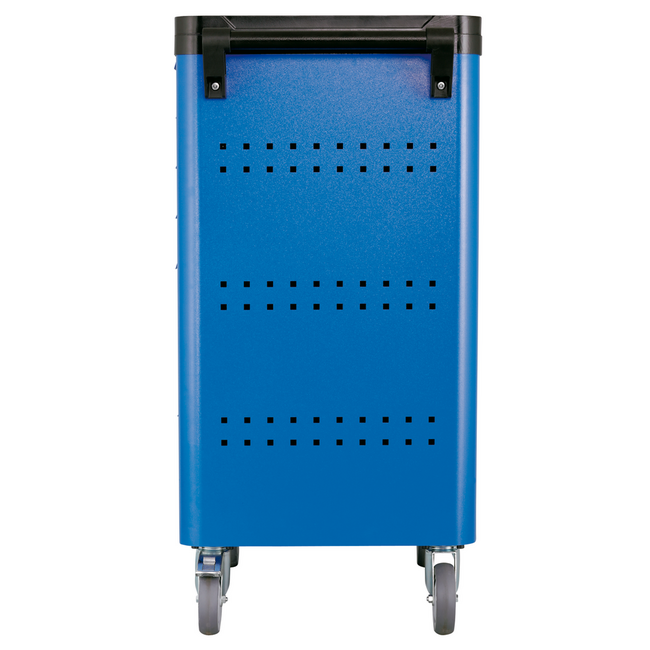

- Side walls with Euro perforation 10 x 38 mm for attaching hooks and tools
- Sides rounded off – a minimum of abutting edges, Body welded, self-supporting and torsionally rigid, Sheet steel, corrosion and scratch-resistant, powder-coated, GEDORE blue
- Drawers: The single drawer lock prevents more than one drawer from opening and allows one-handed operation. Central locking with cylinder lock, 7 wide drawers (W 640x D 400 mm) fully extending, Ball-bearing guide rails
- Load capacity per drawer 20 kg, Sheet steel, corrosion and scratch-resistant, powder-coated
- GEDORE chassis: Total load capacity 400 kg, 4 smooth running wheels on ball bearings (swivel castors Ø 125 mm) with thread guard, one with total brake
- Even with maximum loads: still smooth running, manoeuvrable and keeps to the track
- Options: Can be equipped with GEDORE tool modules (No. 1500 ES, 1500 CT, 2005 CT, TS-147, TS-190, TS-308)
- Can be individually subdivided with lengthwise and crosswise dividers
- Special colours and designs on request
Technical data
- Item number: WSL-L7
- EAN: 4010886947739
- Total length: 870 mm
- Total width: 505 mm
- Total height: 1.045 mm
- Weight: 85 kg
- Material: Sheet steel
- Version: with single pull-out stop
- Surface: powder-coated
- Colour: RAL 5017
- RAL colour tone: blue
- Dimension (L x W x H): 1.045x505 mm
- Drawer type: 5x Type 1, H = 80 mm 2x Type 2, H = 162.5 mm
- Number of crosswise dividers: Available optionally
- Number of lengthwise dividers: Available optionally
- Number of drawers: 7
- Single pull-out stop: yes
- Lockable: yes
- Number of wheels: 4
- Working height: 1.045 mm
- Static load carrying capacity: 400 kg
- Load capacity per drawer: 20 kg
- Fixed roller diameter (2x): 125 mm
- Swivel castor diameter with brakes (2x): 125 mm
