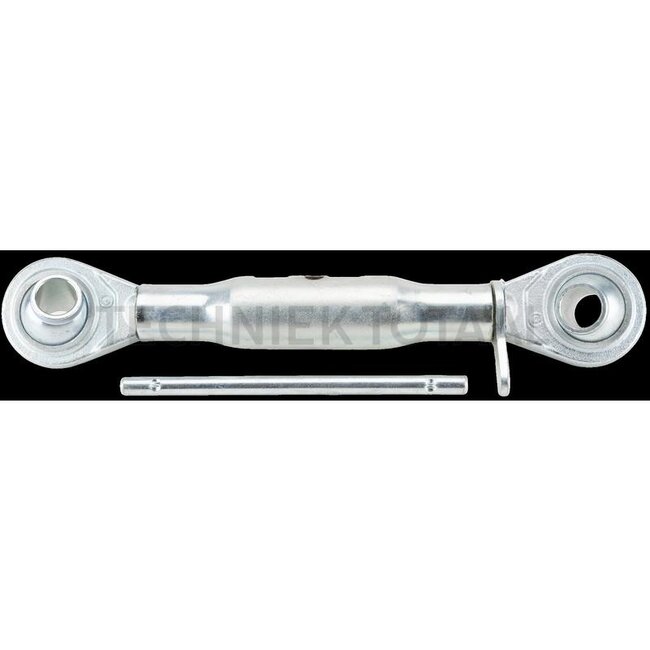

The mechanical top link is category 2 and has an M30 x 3.5 mm thread. The length is 230 mm and the distance between the attachment points is 355 / 490 mm. It is the standard version. Suitable for Saphir PS 2250.
PS 2250
| Article number | 20011475 |
|---|---|
| EAN | 4250808706642 |
| Weight | 3,99 kg |
| Top link type | mechanisch Type: Ball joint/ball joint Version: Standard |
| Thread | M30 x 3,5 |

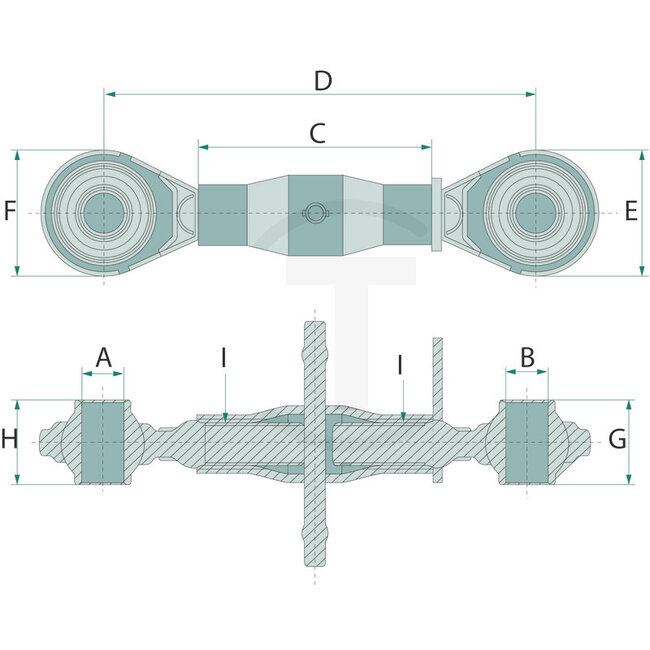

| A cat. | 2 / 25,4 |
| B cat. | 2 / 25,4 |
| C (mm) | 230 |
| D (mm) | 355 / 490 |
| E (mm) | 76 |
| F (mm) | 75 |
| G (mm) | 51 |
| H (mm) | 51 |
| I (mm) | M30 x 3,5 |
