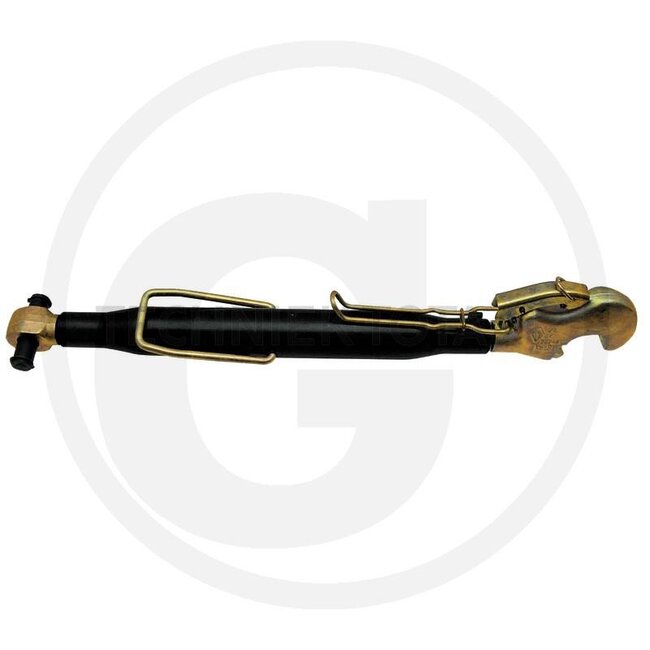

Walterscheid Mechanical top link
Replaces: 1200193

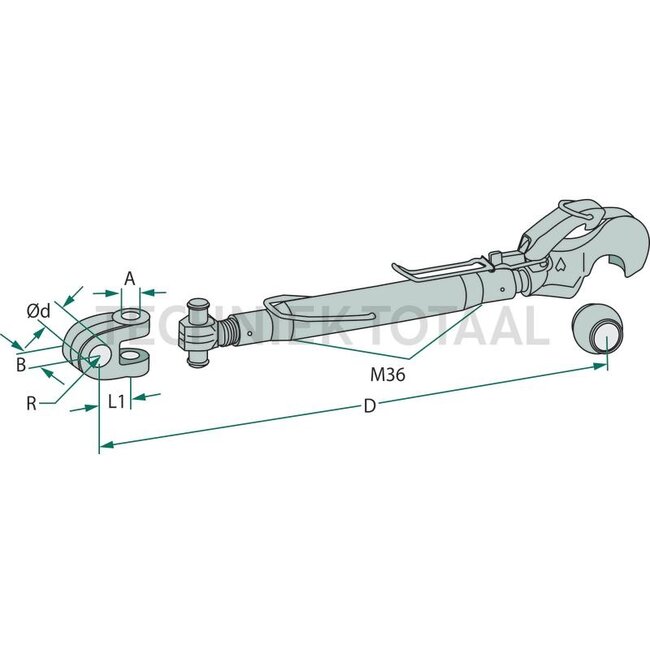

Technical data:
- B cat.: 3 / 32
- K (mm): 51
- Type: Tail hook/clevis joint
- Version: standard
- D (mm): 642 / 952
- Description: <b>Product advantages:</b> Equipped with original Walterscheid hooks Special anti-twist device to prevent unwanted length changes Versatile in use thanks to different connection options Wide range of lengths and adjustment ranges Long service life due to corrosion protection and lubrication option Available for all tractor types All individual components available as replacement parts or for retrofitting
- Assembly notes: The Walterscheid Cat. 3 spindle top link is only suitable for tractors up to max. 135 kW (184 PS) engine power.
- Top link type: mechanical
- A cat.: 3 / 32
- Included in delivery: 1x centre tube (part number: 395309693) 1 x top link hook Cat.3H (part number: 395309671) 1 x rod head Cat.3 (part number: 395309739) 1 x bolt (part number: 395308609) 2 x circlip (part number: 395702048) <b>PLEASE NOTE:</b> A clevis head is not included.
- I (mm): M36 x 3
