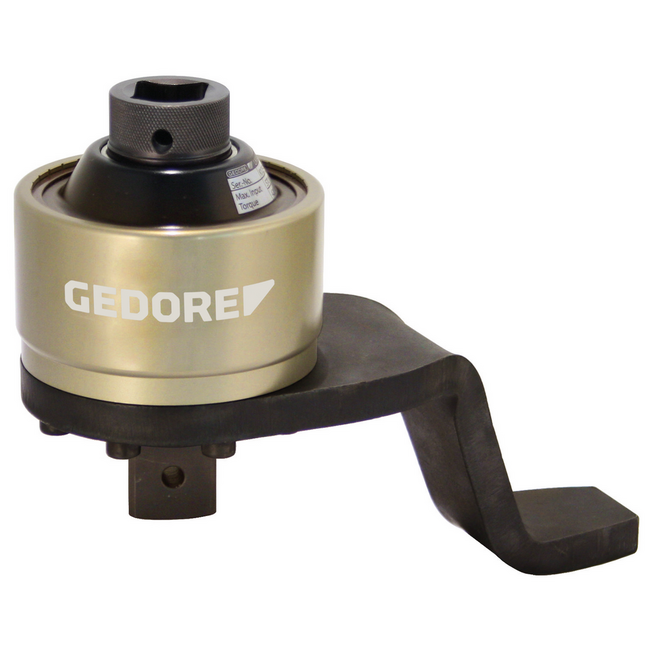

Manual torque multiplier with 1:4 planetary gearing and aluminum housing for controlled tightening and loosening up to 2000 Nm, used together with a torque wrench.

• Especially suitable for: Industry, construction sites, commercial vehicle and car workshops, agricultural technology, construction machinery, Bridge, ship, aircraft and railway construction, refineries
• Machinery and plant engineering, maintenance
• Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
• With single stage planetary gearing, High-performance aluminium housing
• Models with transmission ratio 1:4, 1:5.5
• Guaranteed accuracy: Better than +/- 3 % tolerance
• To operate with a suitable torque wrench, 2 models with maximum load in the range from max. 2000 Nm to 2800 Nm
• Model -Z: with cranked reaction arm Z-shaped made of Chrome-vanadium steel
• Model -L: with straight reaction arm L-shaped, with adjustable reaction square, made of light metal
• Output square with hole for Impact sockets with locking pin and ring

Technical data

• Item number: DVI-20Z
• EAN: 4010886934456
• Total length: 230 mm
• Weight: 4.5 kg

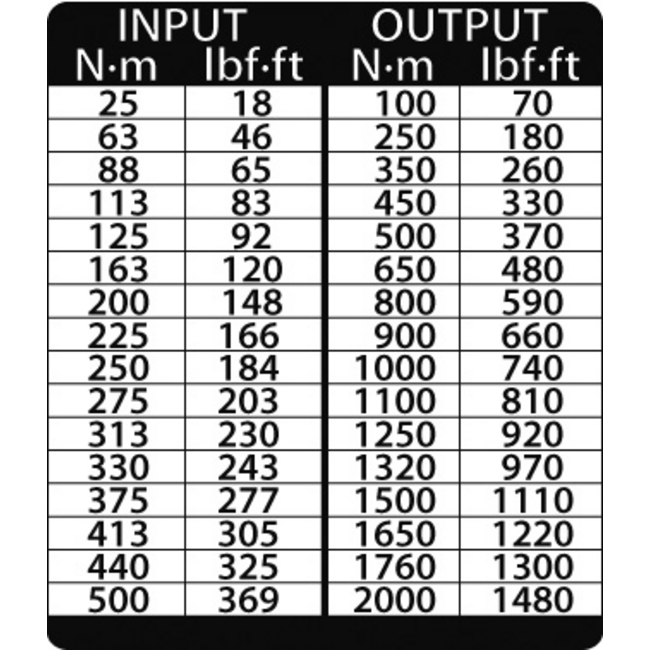

• Set contents: Torque multiplier DREMOPLUS ALU With model-specific, permanently integrated, reaction arm in Z-shape or L-shape Delivered in a sturdy transport case with foam insert Factory test certificate and setting table Technical detail information available on request
• Drive connector square: 20 mm
• Drive connector square: 3/4 Inch
• Version reaction arm: Z-Form, cranked
• Reaction arm mount: screwed over flange
• Input torque (max.): 570 Nm
• Multiplication at the ratio: 1:4
• Output square: 1 Inch
• Input torque (max.): 420 lbf·ft
• Output torque (max.): 2000 Nm
• Output torque (max.): 1480 lbf·ft
• Total width without reaction arm: 88 mm
• Total height without reaction arm: 131 mm
• Fuse for drive square: Locking pin
• Fuse output square drive: Circlip and pin
• Overload protection: Shear-off drive square
• Output square: 25 mm
• Distance output square - start reaction arm (min.): 100 mm
• Distance output square - end of reaction arm (max): 150 mm
