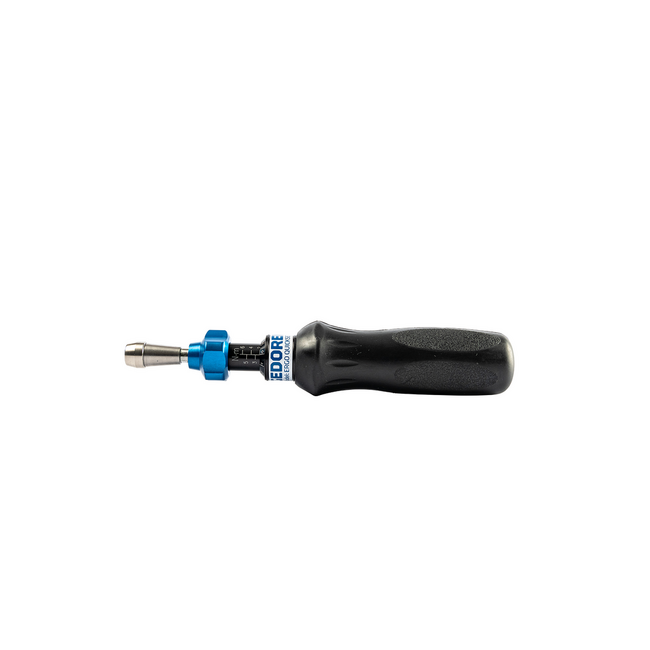

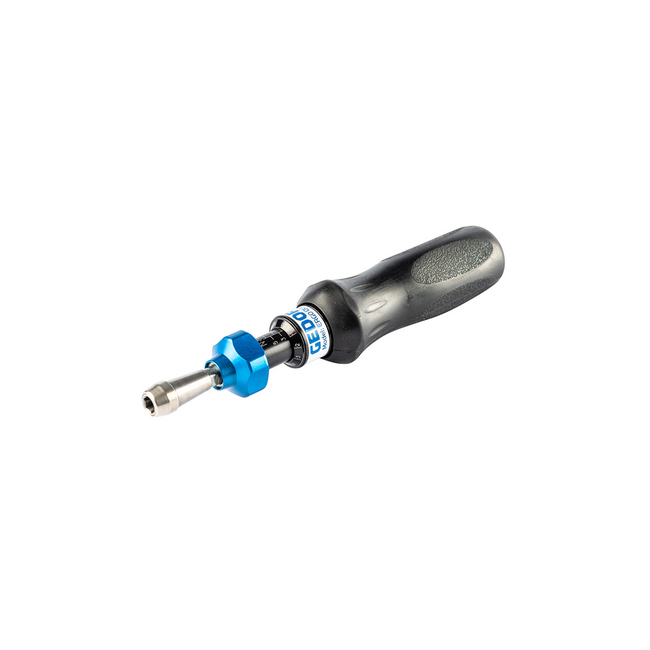

Adjustable torque screwdriver with 1/4" hex bit holder for 1.2 to 6 Nm, with slip clutch and Positiv-Lock setting lock for assembly and electronics work.
Use: Controlled screw tightening in the range of 1 - 6 Nm, High-speed, controlled tightening enables serial production
Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control
Features: Adjustable Torque Wrench - with Scale
With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3
Working accuracy: +/- 6 % tolerance of set torque
Version according to DIN EN ISO 6789 Type II Class D
Precision radial ball clutch and cam design for controlled bi-directional tightening
Precision mechanism slips very noticeably when the pre-set value is achieved
Automatic resetting to the starting position, "Positive-Lock" system automatically fixes the set value preventing it from wrong setting
Measuring Range 1 Nm to 6 Nm
Micrometer scale division: 0.1 Nm
EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
Technical data
Item number: QSN 600 FH
EAN: 4002805921098
Total length: 196 mm
Total height: 38 mm
Weight: 0.454 kg
Target groups: Automotive Electronics industry Industry Precision mechanics Military Service
Drive connector hexagon: 6.3 mm
Drive connector hexagon: 1/4 Inch
Range of application: Assembly Production Quality control Series assembly Maintenance and repair
