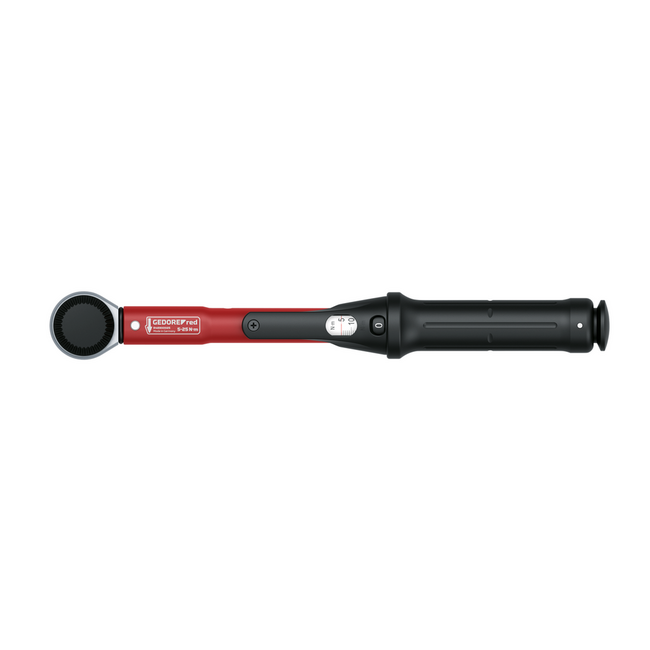

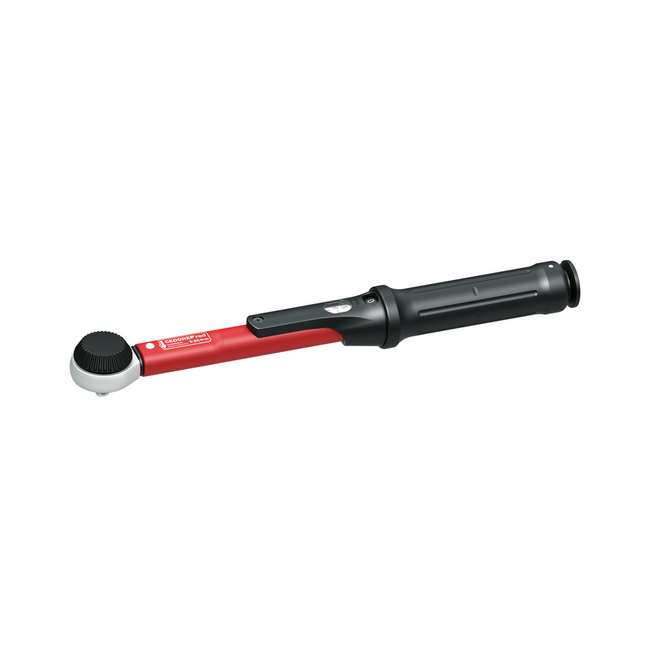

Adjustable 1/4" torque wrench for 5 to 25 Nm with ratchet head, audible and tactile click, ±3% accuracy and a test certificate to DIN EN ISO 6789-2.

• Use: Controlled screw tightening from 5 to 25 Nm, Repetition-accurate and precision-like
• Audible Torque triggering can clearly be heard and felt
• Right-hand and left-hand tightening by changing the mushroom head / push-through square
• Features: Adjustable torque wrench with square drive and integrated ratchet function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
• Tripping accuracy: +/-3 % tolerance of the set scale value
• Scope of delivery: Torque wrench with test certificate acc. to DIN EN ISO 6789, Operating instructions

Technical data

• Item number: R48900025
• EAN: 4060833012140
• Total length: 285 mm
• Total width: 34 mm
• Total height: 34 mm
• Weight: 0.7 kg
• Width of head 1: 35 mm
• Target groups: Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
• Head height 1: 25.3 mm
• Square drive: 1/4 Inch
• Square drive: 6.3 mm
• Range of application: Assembly Maintenance and repair
• Torque (min.): 25 Nm
• Return angle: 10 Grad
• Number of teeth: 36
• Drive type/drive: square socket with knob, serrated
• Torque (min.): 5 Nm
• Distance housing - square drive: 17.5 mm
• Scale type: Mono
• Precision +/-: +/- 3 percent
• Tightening direction: Left and right
• Test certificate: DIN EN ISO 6789-2:2017
• Vernier Nm: 0.1 Nm
• Graduation: 1
• Fuse output square drive: Ball safety device
• Torque range (min./max.): 5-25 Nm
• Trigger mechanism: Short path triggering
• Calibration length: 206.5 mm
