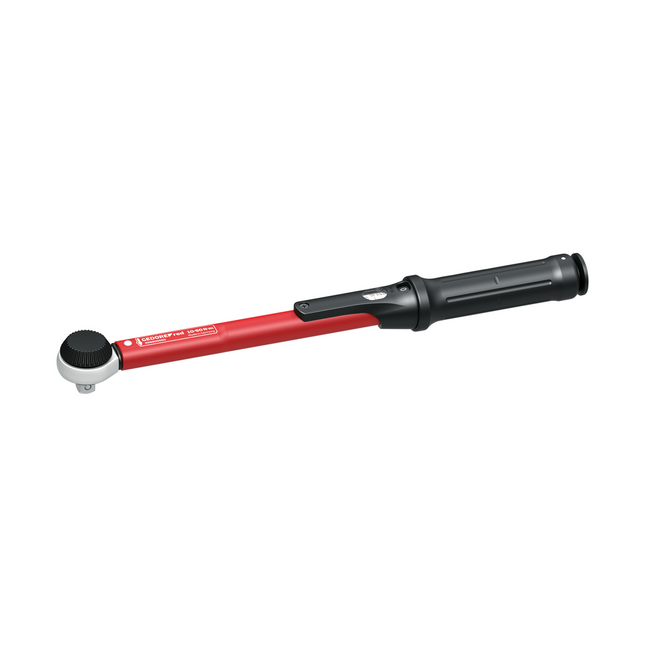

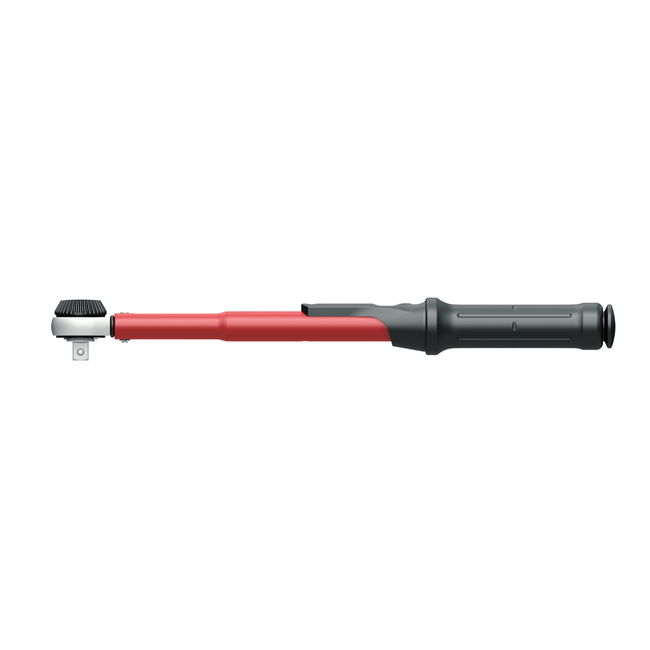

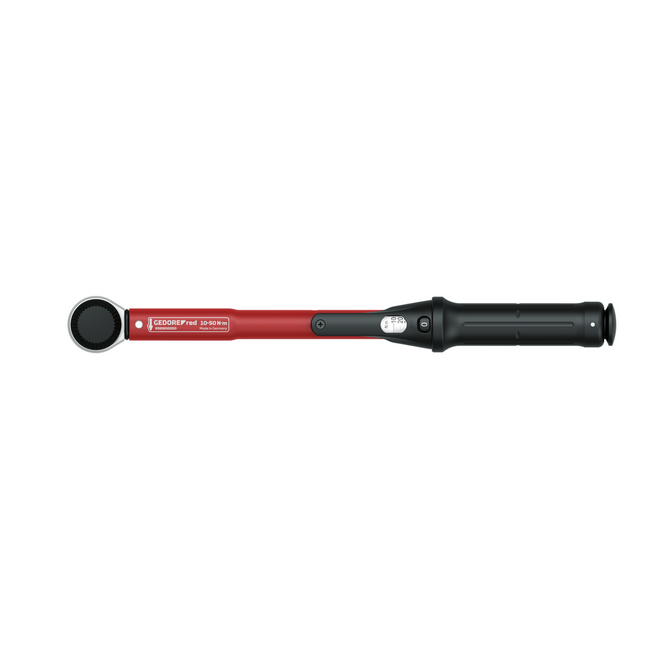

Adjustable 3/8" torque wrench for 10 to 50 Nm with ratchet head, audible and tactile click, ±3% accuracy and a test certificate to DIN EN ISO 6789-2.

• Use: Controlled screw tightening from 10 to 50 Nm, Repetition-accurate and precision-like
• Audible Torque triggering can clearly be heard and felt
• Right-hand and left-hand tightening by changing the mushroom head / push-through square
• Features: Adjustable torque wrench with square drive and integrated ratchet function
• Square drive with ratchet mechanism
• Torque is set by turning the handle
• The set value is fixed through the lock at the end of the handle
• Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting
• Tripping accuracy: +/-3 % tolerance of the set scale value
• Scope of delivery: Torque wrench with test certificate acc. to DIN EN ISO 6789, Operating instructions

Technical data

• Item number: R58900050
• EAN: 4060833018715
• Total length: 330 mm
• Total width: 36 mm
• Total height: 34 mm
• Weight: 0.76 kg
• Width of head 1: 35 mm
• Target groups: Automotive Industry Construction and commercial vehicles Consumer Energy Mechanical engineering Workshop Service Agriculture Oil & Gas Utilities
• Head height 1: 25.3 mm
• Square drive: 3/8 Inch
• Square drive: 10 mm
• Range of application: Assembly Maintenance and repair
• Torque (min.): 50 Nm
• Return angle: 10 Grad
• Number of teeth: 36
• Drive type/drive: square socket with knob, serrated
• Torque (min.): 10 Nm
• Distance housing - square drive: 17.5 mm
• Scale type: Mono
• Precision +/-: +/- 3 percent
• Tightening direction: Left and right
• Test certificate: DIN EN ISO 6789-2:2017
• Vernier Nm: 0.25 Nm
• Graduation: 2.5
• Fuse output square drive: Ball safety device
• Torque range (min./max.): 10-50 Nm
• Trigger mechanism: Short path triggering
• Calibration length: 256.5 mm
