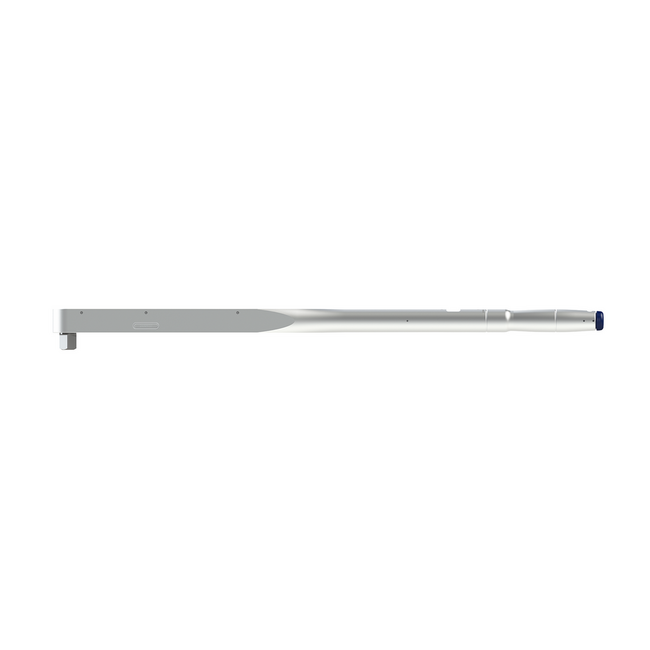

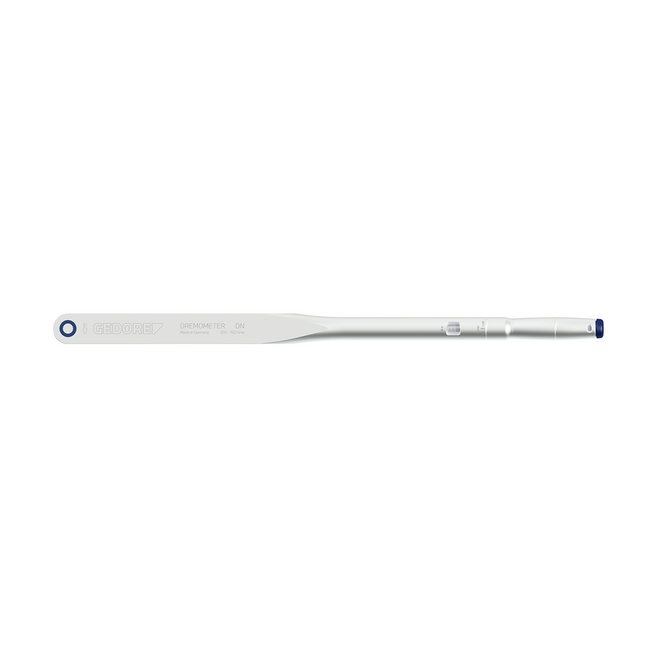

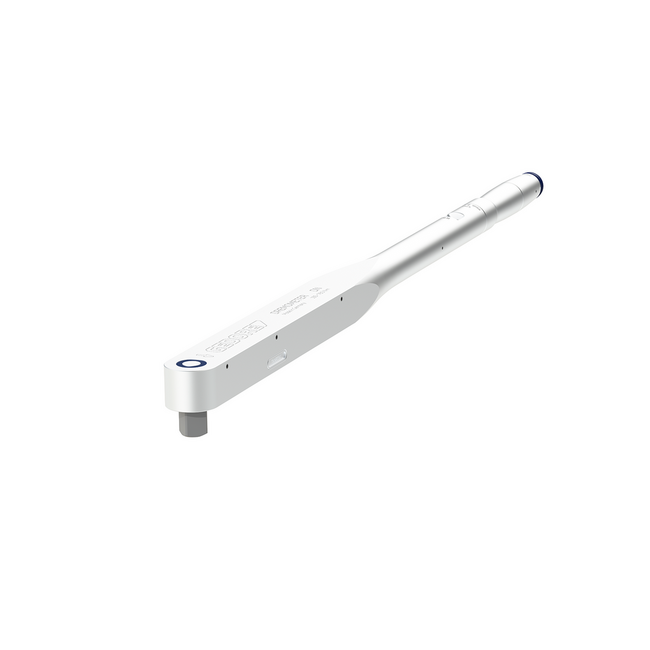

Torque wrench set for controlled right-hand tightening from 155 to 760 Nm, with 3/4" ratchet head, aluminum extension tube and vernier scale with 1 Nm resolution, calibrated to ±3%.
- Torque wrench 155-760 Nm tightening range with test certificate
- With extension tube, Controlled clockwise tightening
- 3/4" output drive
- Plus clockwise rotating 3/4" add-on ratchet, Classified as per DIN EN ISO 6789-2:2017
- Adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%, Vernier scale - resolution 1.0 Nm, Made in Germany
Technical data
- Item number: 8563-N-05
- EAN: 4002805937822
- Total length: 812 mm
- Total width: 45 mm
- Total height: 35 mm
- Weight: 5.53 kg

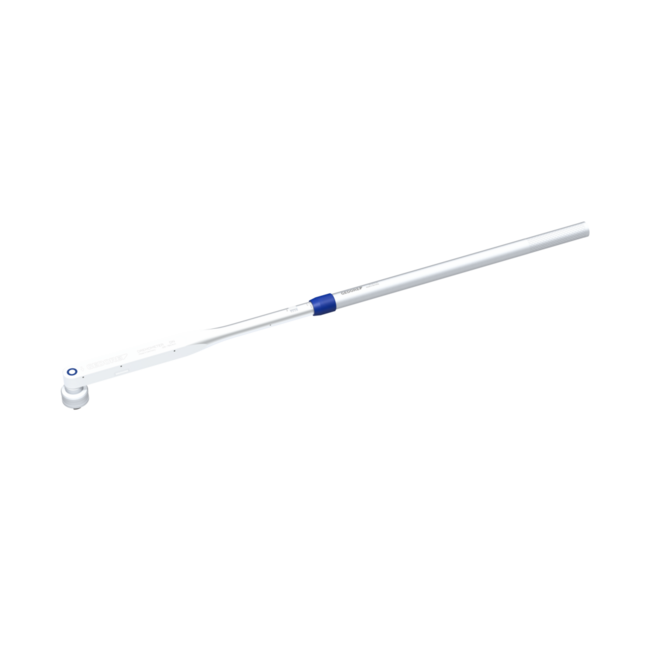

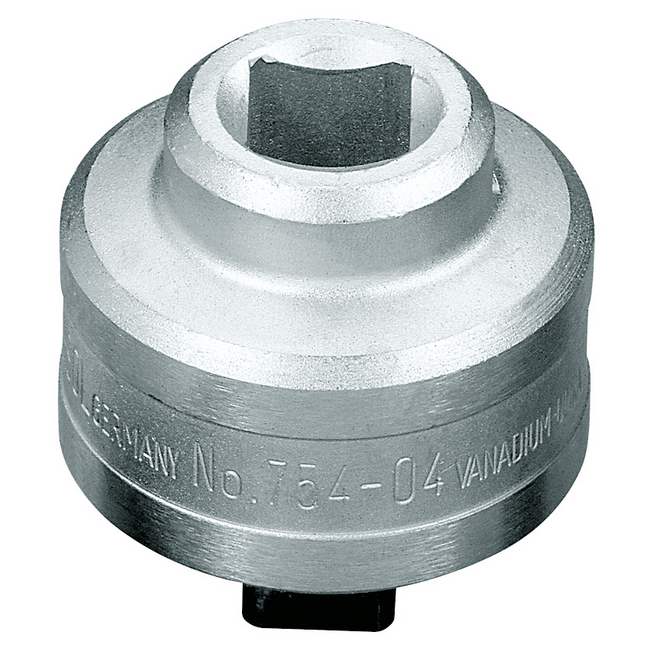

- Set contents: DREMOMETER DN 3/4" with vernier 155-760 Nm No. 8563-N-00 Plug-in pipe DR/DX ALU No. 8571-80 Plug-in ratchet No. 754-04
- Square drive: 3/4 Inch
- Square drive: 20 mm
- Torque (min.): 760 Nm
- Drive type/drive: Single square
- Torque (min.): 155 Nm
- Distance housing - square drive: 22.5 mm
- Precision +/-: +/- 3 percent
- Tightening direction: right
- Test certificate: DIN EN ISO 6789-2:2017
- Vernier Nm: 1 Nm
- Graduation: 10
