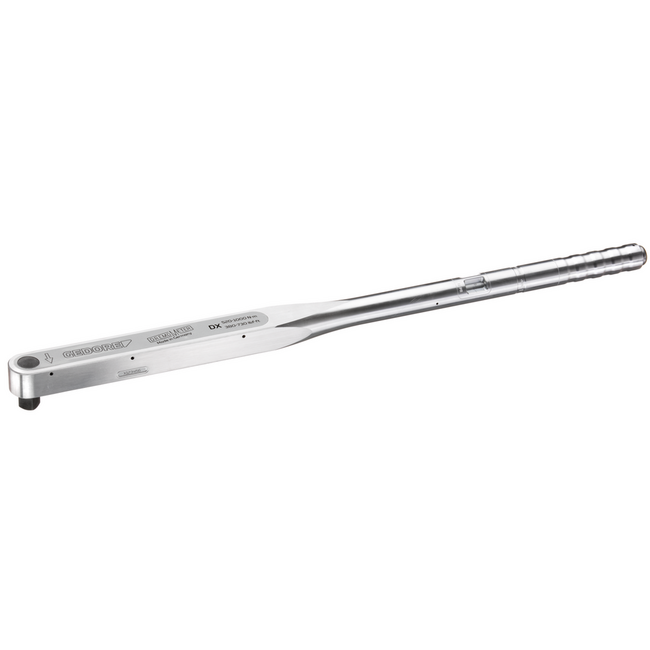

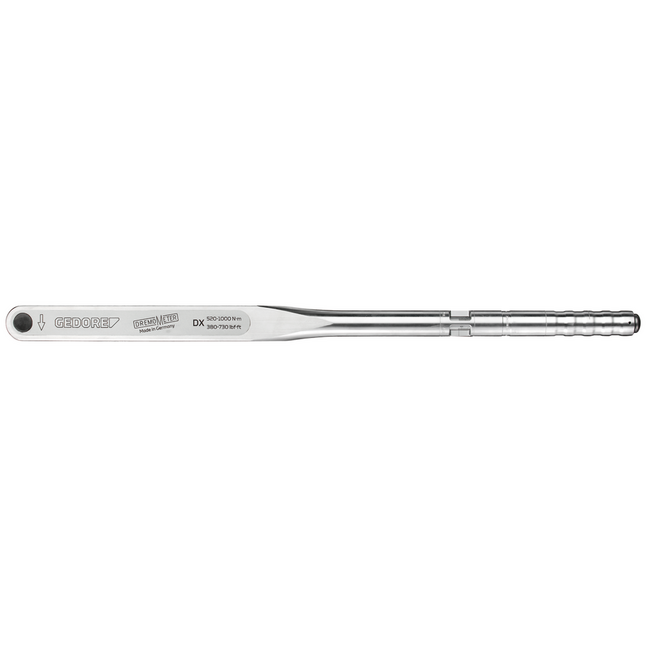

Click-type torque wrench with one-piece aluminum body and 3/4" square drive for bolted joints from 520 to 1000 Nm, calibrated to ±3% and supplied with extension tube.
Use: Controlled screw tightening in the range of 520 - 1000 Nm / 380 - 730 lbf·ft, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Double scale with a scale division of 10 Nm and 10 lbf·ft, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety
Can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening
Technical data
Item number: 8571-01
EAN: 4002805857113
Total length: 812 mm
Total width: 45 mm
Total height: 60 mm
Weight: 4.48 kg

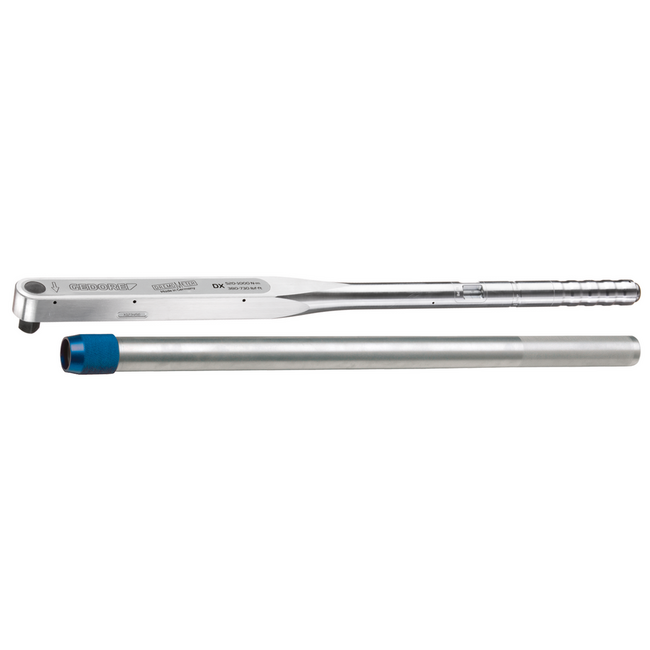

Set contents: ALU extension tube No. 8571-80
Material: Aluminum alloy
Width of head 1: 45 mm
Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil & Gas
Head height 1: 35 mm

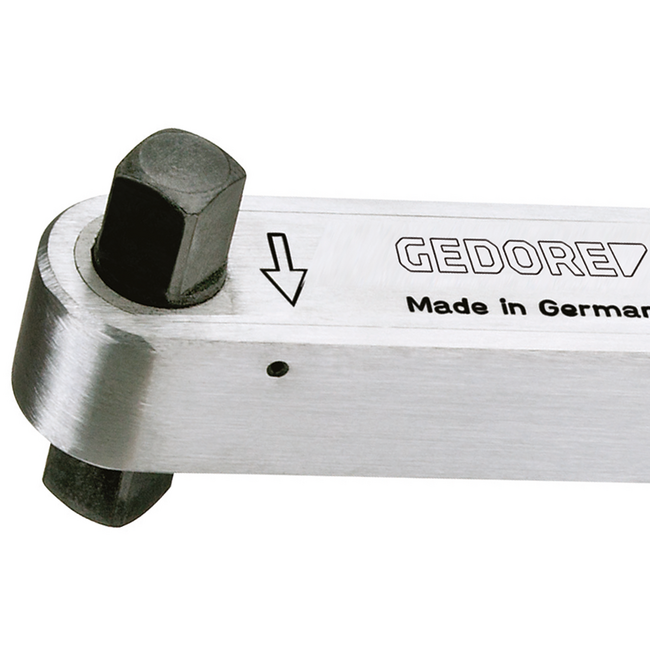

Standard: DIN 3120 - B 20 ISO 1174
Square drive: 3/4 Inch
Square drive: 20 mm
Range of application: Assembly Series assembly Production Maintenance and repair
