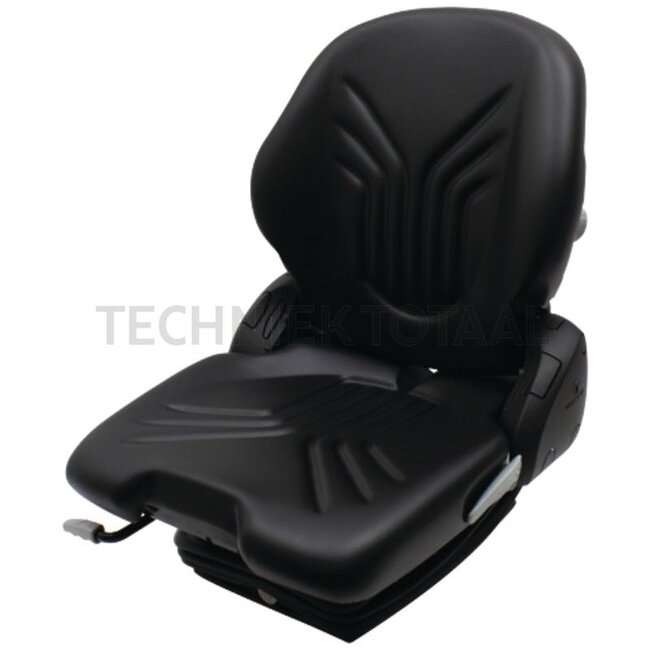

GRAMMER Compacto Comfort M
MSG93/521
Replaces: INKL LHF 1095445
Technical data:
- Lordosenstütze: Mechanical
- Height (mm): 659
- Seat type: MSG93/521
- Seat width (mm): 450
- Restraint system: Optional
- Rückenverlängerung: Optional
- Version: The Compacto Comfort M combines GRAMMER's typical suspension, seating and operating comfort in a very small space. The seat can be adjusted with one hand. The air suspension is equipped with combined weight and height adjustment. An easy-to-read display band guarantees that the remaining suspension travel is within the green range regardless of the driver's weight.
- Seat heater: Optional
- Fore/aft isolator: Yes
- Suspension: Air suspension
- Track gauge (mm): 225
- Seat contact switch: Optional
- On-board voltage (V): 12
- Length (mm): 538
- Upholstery type: PVC
- Armrest: Optional
- • Comfort seat with air suspension and 12V compressor • Suspension travel 80 mm • Weight adjustment, adjustment range of 50 - 130 kg • Height adjustment 60 mm, continuous (air-assisted) • Longitudinal adjustment 180 mm • Mechanical lumbar support • Backrest and tilt adjustment • Seat cushion width 450 mm
