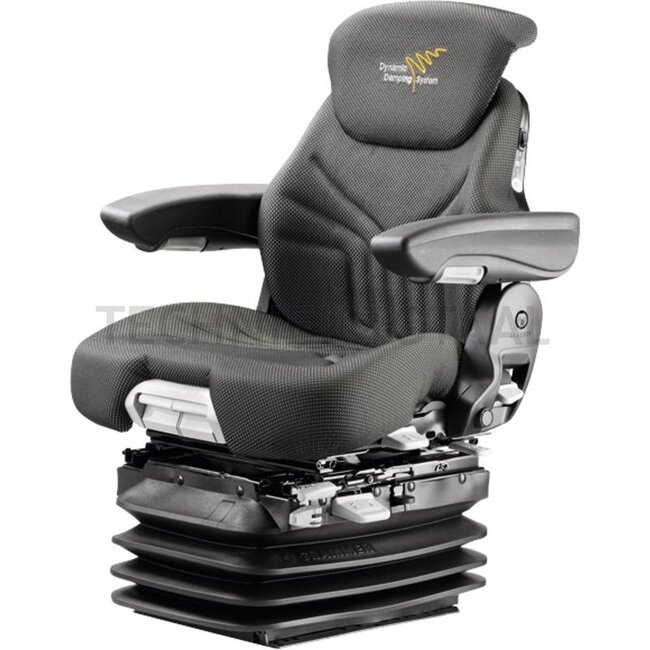

GRAMMER Maximo Dynamic DDS JD6R models

MSG95AL/741

Replaces: 1288545JD6R

Technical data:

• Restraint system: Optional
• Height (mm): 744 → 824
• Fore/aft isolator: Yes
• Rückenverlängerung: Yes
• Seat contact switch: Optional
• Upholstery type: Fabric
• Seat type: MSG95AL/741
• Length (mm): 631
• Track gauge (mm): 260
• On-board voltage (V): 12
• Armrest: Yes
• Lordosenstütze: Pneumatic adjustment
• Width (mm): 550
• Suspension travel 120 mm Weight adjustment: automatic Dynamic damper for vertical suspension (DDS: Dynamic Damping System) APS: automatic positioning system Continuous height adjustment, 80 mm air-assisted Lockable fore/aft isolator Lockable side horizontal suspension Longitudinal adjustment 210 mm Swivel adaptor, swivel range 20 degrees left/right Backrest tilt adjustment, max. 35 degrees Integrated back extension, retractable Lumbar support with pneumatic adjustment Seat cushion depth and tilt adjustment Seat heater 12V Seat cushion width: 550 mm (extra high and wide) Armrests: height and tilt adjustable, folding, width: 80 mm, length: 380 mm Storage pocket Track gauge: 260 mm Cover: fabric, new design (anthracite green silver)
• Seat heater: Yes
• Suspension: Air suspension
• Version: The Maximo Dynamic with Dynamic Damping System sets the standard for seats with passive suspension for medium and large tractors. The automatic weight adjustment, automatic damper and pneumatic lumbar support in combination with the wide cushions ensure high seating and operating comfort.
• Side horizontal suspension: Yes
• Rotation: Yes
• Seat width (mm): 550
