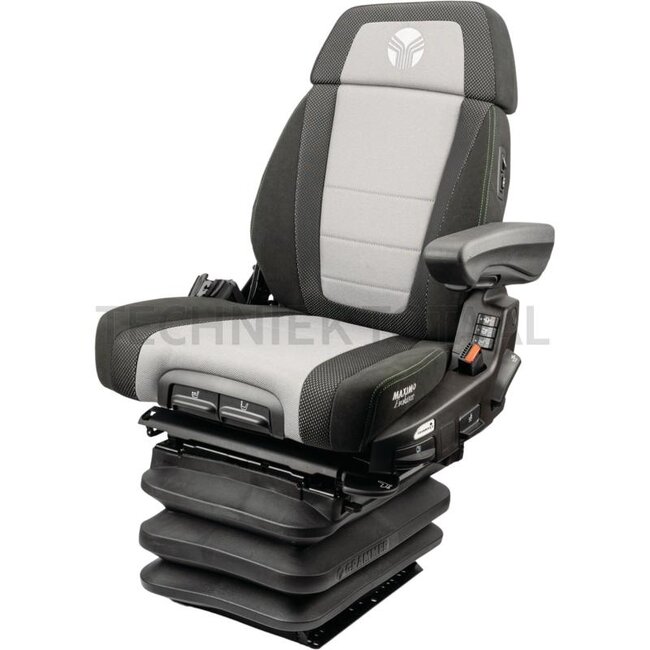

GRAMMER Maximo Evolution Dynamic
MSG95EL/741
Technical data:
- Rückenverlängerung: Yes
- Seat heater: Yes
- Fore/aft isolator: Yes
- Joystick console: Yes
- Rotation: Yes
- Suspension: Air suspension
- Length (mm): 636
- To fit: Deutz VI
- • Luxury seat with low-frequency air suspension and 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Fore/aft isolator and side horizontal suspension • Active weight adjustment (electronic), automatic positioning system • Pneumatic height adjustment 80 mm, continuous • Longitudinal adjustment 210 mm, rotation max. 15° right/left, lockable in 7.5° steps • Active climate control system and heater in seat and backrest • 2-stage seat heater • Pneumatic lumbar support • Pneumatic side contour adjustment • Backrest tilt adjustment • Seat cushion depth and tilt adjustment • Storage pocket • Seat cushion width 550 mm • Dualmotion back support • Restraint system • Side horizontal suspension • Left armrest, height adjustable and folding, 80 x 380 mm, tilt adjustable • Seat contact switch
- Lordosenstütze: Pneumatic, 2-way
- Version: The Maximo Evolution Dynamic with Dynamic Damping System sets the standard for suspension comfort for seats with passive suspension in medium and large tractors. The adaptive Dualmotion back support supports the back and, in conjunction with the swivel adaptor, ensures maximum visibility and support when reversing. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. With the electronic weight adjustment, the seat adjusts automatically to the driver’s weight. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. Multifunction armrests can be connected using various adaptor plates.
- Height (mm): 918
- On-board voltage (V): 12

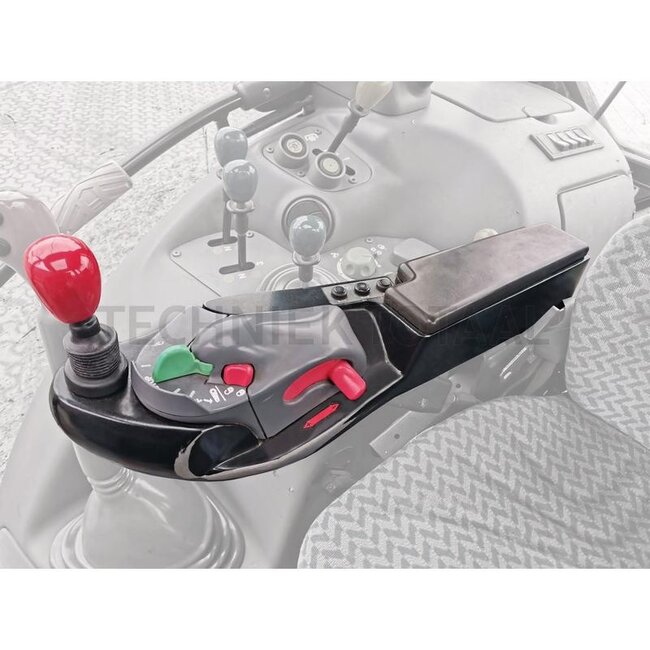

- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).
- Seat type: MSG95EL/741
- Track gauge (mm): 260
- Seat width (mm): 550
- Restraint system: Yes
- Seat contact switch: Yes
- Upholstery type: Fabric / new design
- Armrest: Yes, left
- Side horizontal suspension: Yes
Suitable for:
Deutz-Fahr: Agrotron 160, Agrotron 175, Agrotron 200, Agrotron 106 MK3, Agrotron 110 MK3, Agrotron 115 MK3, Agrotron 120 MK3, Agrotron 135 MK3, Agrotron 150 MK3, Agrotron 160 MK3, Agrotron 165 MK3, Agrotron 175 MK3, Agrotron 200 MK3, Agrotron 230 MK3, Agrotron 260 MK3, Agrotron New 150.7, Agrotron New 165.7, Agrotron New 180.7, Agrotron TTV 610, Agrotron TTV 620, Agrotron TTV 630, Agrotron TTV 1130, Agrotron TTV 1145, Agrotron TTV 1160, Agrotron X720
