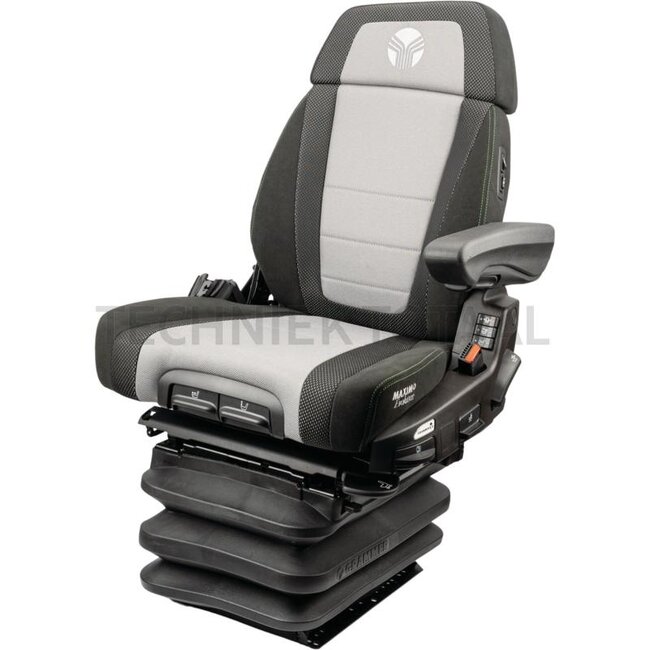

GRAMMER Maximo Evolution Dynamic

MSG95EL/741

Technical data:

• • Luxury seat with low-frequency air suspension and 12V compressor • Dynamic Damping System • Suspension travel 120 mm • Fore/aft isolator and side horizontal suspension • Active weight adjustment (electronic), automatic positioning system • Pneumatic height adjustment 80 mm, continuous • Longitudinal adjustment 210 mm, rotation max. 15° right/left, lockable in 7.5° steps • Active climate control system and heater in seat and backrest • 2-stage seat heater • Pneumatic lumbar support • Pneumatic side contour adjustment • Backrest and tilt adjustment • Seat cushion depth and tilt adjustment • Storage pocket • Seat cushion width 550 mm • Dualmotion back support • Restraint system • Side horizontal suspension • Left armrest, height adjustable and folding, 80 x 380 mm, tilt adjustable • Seat contact switch
• Height (mm): 918
• Upholstery type: Fabric / new design
• Fore/aft isolator: Yes
• Track gauge (mm): 260
• On-board voltage (V): 12
• Seat heater: Yes
• Suspension: Air suspension
• Version: The Maximo Evolution Dynamic with Dynamic Damping System sets the standard for suspension comfort for seats with passive suspension in medium and large tractors. The adaptive Dualmotion back support supports the back and, in conjunction with the swivel adaptor, ensures maximum visibility and support when reversing. The side contour adjustment in the back cushion allows the seat to be adjusted to any body type on an individual basis. With the electronic weight adjustment, the seat adjusts automatically to the driver’s weight. The active seat climate control - which wicks away moisture - ensures perfect seating comfort. Multifunction armrests can be connected using various adaptor plates.
• Length (mm): 636
• Seat contact switch: Yes
• Rotation: Yes
• Joystick console: Yes
• Rückenverlängerung: Yes
• Side horizontal suspension: Yes
• Armrest: Yes, left
• Lordosenstütze: Pneumatic, 2-way
• Restraint system: Yes

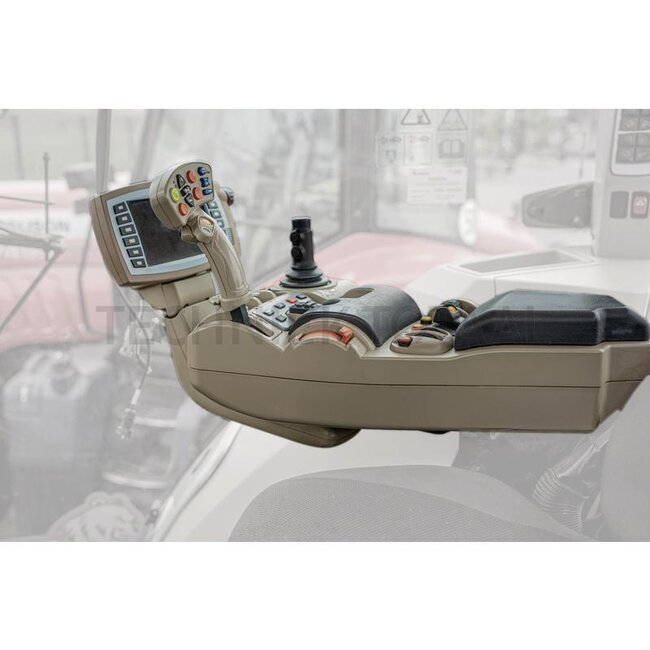

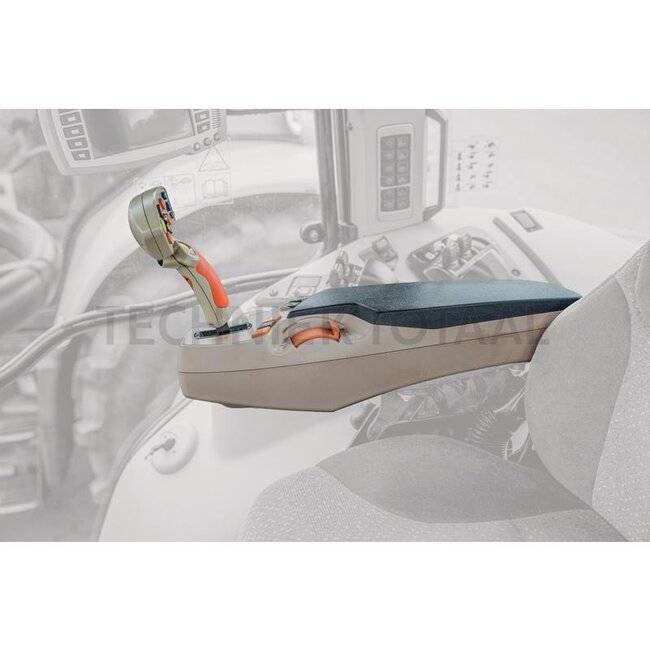

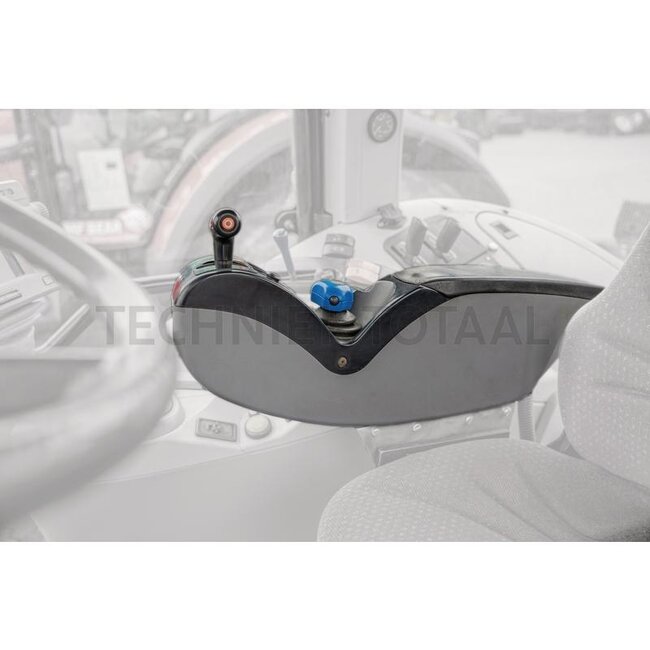

• Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).
• Seat width (mm): 550
• Seat type: MSG95EL/741
• To fit: Massey Ferguson

Suitable for:

Massey Ferguson: 550, 560, 565, 575, 590, 592, 595, 670, 675, 690, 698, 699, 1007, 1080, 2675, 2620, 2640, 2680, 2720, 2625, 2645, 2685, 2725, 3050, 3055, 3060, 3065, 3070, 3075, 3080, 3085, 3090, 3095, 3115, 3120, 3125, 3140, 3435, 3445, 3455, 3525, 3545, 3610, 3630, 3650, 3660, 3670, 3680, 3690, 3635, 3645, 3655, 4215, 4220, 4225, 4235, 4240, 4245, 4255, 4260, 4265, 4270, 4315, 4320, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 5425, 5435, 5445, 5455, 5460, 5465, 5470, 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6260, 6265, 6270, 6280, 6290, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6490, 6495, 6497, 7465, 7480, 7485, 7490, 7495, 8110, 8120, 8130, 8140, 8150, 8160, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270, 8280, 8650, 8660, 8670, 8680, 8690
