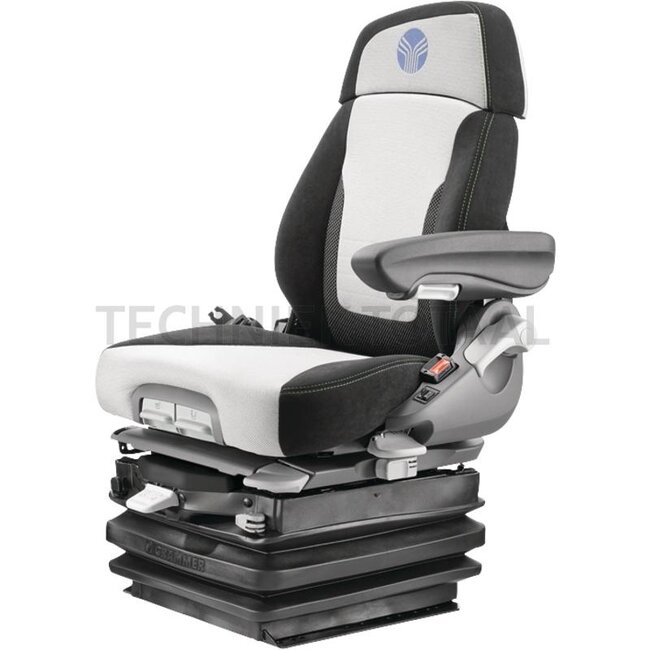

GRAMMER Maximo XT Dynamic Plus JD
MSG97AL/741

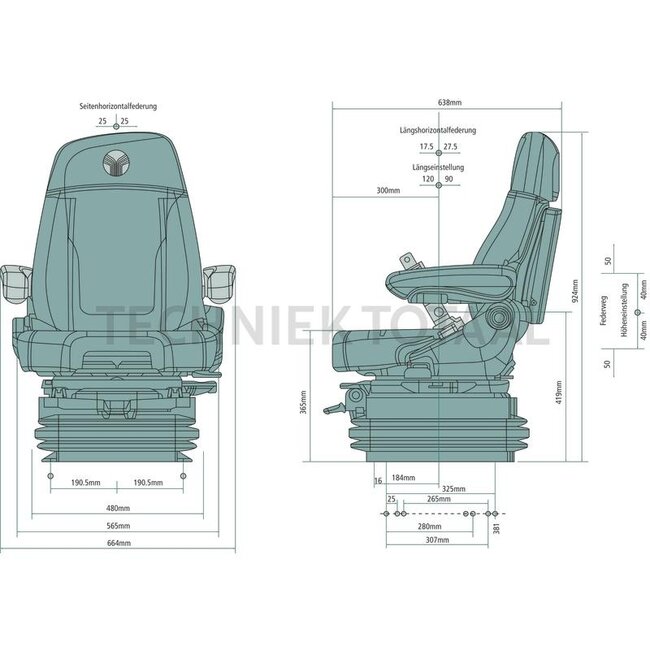

Technical data:
- Rotation: Yes
- Upholstery type: Fabric / new design
- Height (mm): 881 → 961
- Seat width (mm): 565
- Seat heater: Yes
- Side horizontal suspension: Yes
- Restraint system: Yes
- To fit: John Deere
- Joystick console: Optional
- Version: The Maximo XT Dynamic Plus for large agricultural machinery features the unique Dualmotion technology in addition to the Dynamic Damping System. The upper backrest rotates with the driver where required. Together with the swivel adaptor, this ensures perfect visibility and safe vehicle control when working in reverse, while at the same time providing optimum back support The Maximo XT Dynamic Plus features wider suspension for use in combination with heavy multifunction armrests (not included).
- Seat contact switch: Yes
- Rückenverlängerung: Yes
- Seat type: MSG97AL/741
- Length (mm): 638
- Lordosenstütze: Pneumatic
- • Air suspension with 12V compressor • Extra wide reinforced version • Dynamic Damping System • Suspension travel 120 mm • Automatic weight adjustment 50-130 kg • Swivel adaptor adjustment range 7.5° left, 15° right • Storage pocket • APS (automatic positioning system) • Armrests height and tilt adjustable, both sides 80 x 380 mm, automatic damper • Height adjustment 80 mm, continuously (pneumatic) • Passive climate control system • Longitudinal adjustment 210 mm • Lockable fore/aft isolator • Pneumatic 2-way lumbar support • Backrest tilt adjustment • Duo Sensitiv restraint system • Dualmotion back support • Lockable side horizontal suspension • 2-stage seat heater • Seat cushion depth and tilt adjustment • <b>Optional equipment</b> • Seat contact switch • Adaptor plate for multifunction armrest
- Suspension: Air suspension
- Track gauge (mm): 381
- On-board voltage (V): 12
- Fore/aft isolator: Yes
