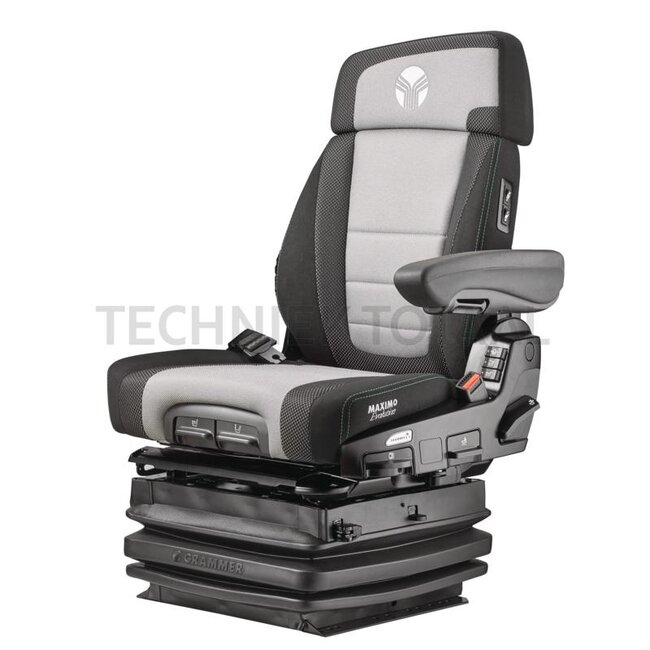

GRAMMER Maximo XT Evolution Dynamic
MSG97EL/741

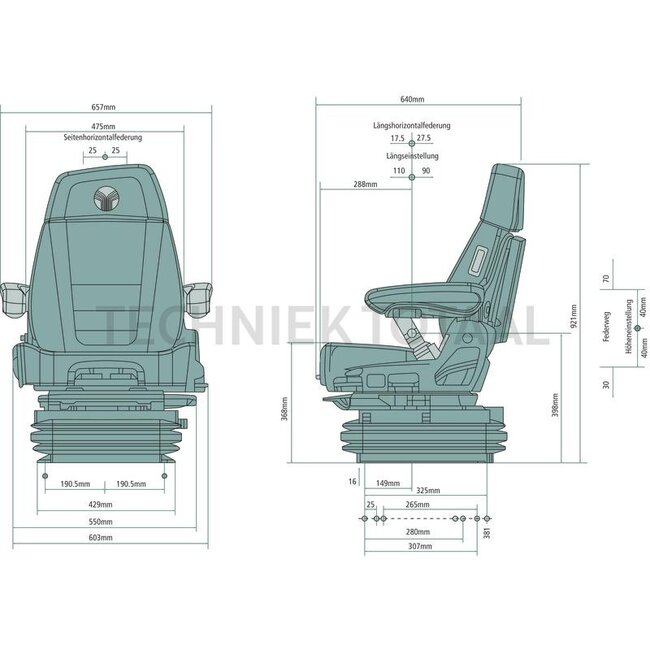

Technical data:
- Joystick console: Yes
- Height (mm): 921
- Rotation: Yes
- Included in delivery: Seat supplied with seat contact switch and bracket for your existing control armrest. The bracket can be used to mount your existing control armrest on new seats and is already pre-assembled. The image shows a control armrest that fits this seat (not included, identification aid only).
- Rückenverlängerung: Yes
- Upholstery type: Fabric / new design
- Suspension: Air suspension
- Track gauge (mm): 380
- Seat width (mm): 550
- • Air suspension with 12V compressor • Extra wide reinforced version • Dynamic Damping System, suspension travel 120 mm • Electronic weight adjustment 50-130 kg • Storage pocket • APS (automatic positioning system) • Left armrest tilt adjustable 80 x 380 mm, automatic damper • Swivel adaptor adjustment range 15° • Height adjustment 80 mm, continuous (pneumatic) • Active climate control system • 2-stage seat heater • Longitudinal adjustment 200 mm • Lockable side horizontal suspension • Lockable fore/aft isolator • Pneumatic 2-way lumbar support • Backrest tilt adjustment • Dualmotion back support • Seat cushion depth and tilt adjustment • Side contour adjustment back cushion • Seat contact switch • Duo Sensitiv restraint system <b>Optional equipment</b> Right armrest tilt adjustable 80 x 380 mm Adaptor plate for multifunction armrest
- To fit: Claas
- Lordosenstütze: Pneumatic, 2-way
- Restraint system: Yes
- Length (mm): 640
- Seat heater: Yes
- On-board voltage (V): 12
- Seat contact switch: Yes
- Fore/aft isolator: Yes
- Seat type: MSG97EL/741
- Armrest: Yes
- Side horizontal suspension: Yes
