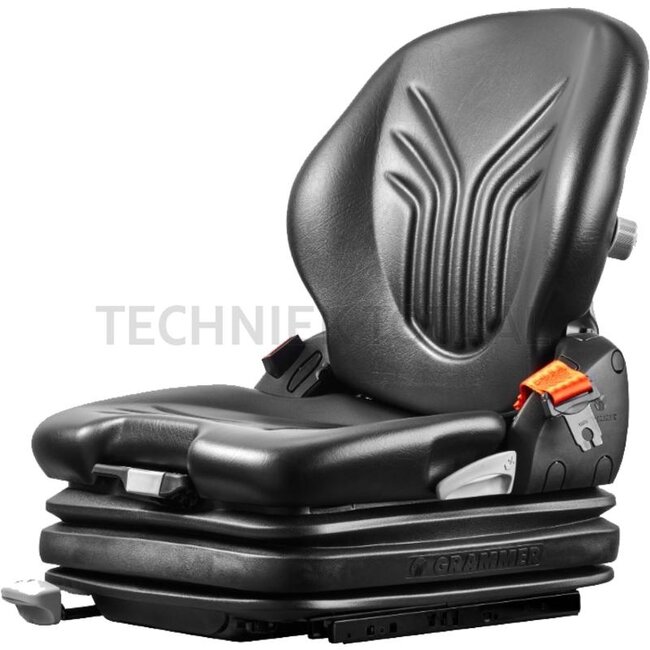

GRAMMER Primo XM Plus

MSG65/2731

Replaces: 1451072

Technical data:

• Version: The PRIMO XM PLUS has low-profile mechanical suspension with 80 mm suspension travel. Thanks to its easily accessible ratchet function, the seat can be quickly and easily adjusted to the driver's weight. The new and even more comfortable seat upper part with 520 mm seat cushion width enables a safe and ergonomic sitting position in every work situation. The XM PLUS meets the latest safety requirements, and is equipped as standard with a seat and belt contact switch and a Duo Sensitiv ELR belt system with orange belt strap.
• Rückenverlängerung: Optional

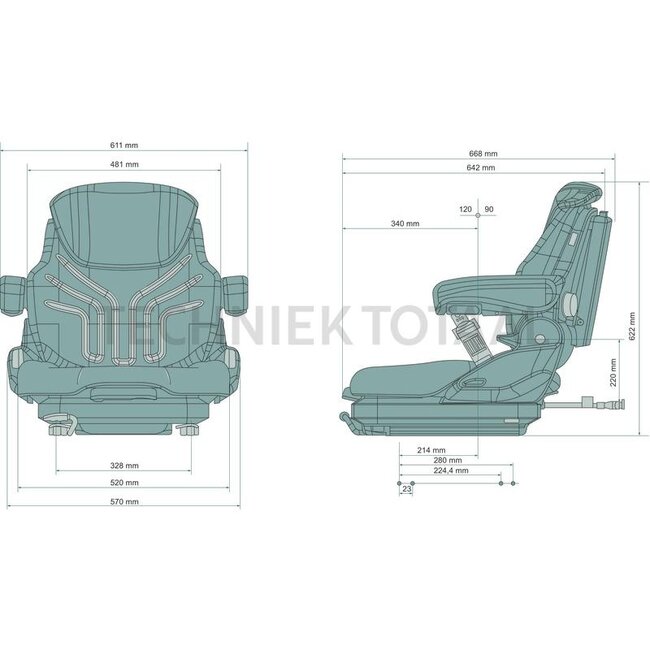

• Track gauge (mm): 328
• Restraint system: 2-point belt, automatic Duo Sensitiv
• Height (mm): 622
• Suspension travel 80 mm Mechanical weight adjustment (45 kg - 170 kg) Longitudinal adjustment 210 mm Backrest tilt adjustment Lumbar support with mechanical adjustment Duo Sensitiv restraint system with retractor Belt buckle switch Seat contact switch Seat cushion width: 520 mm Track gauge: 328 mm Cover: black imitation leather
• To fit: Construction machinery, farm loaders, forklifts
• Upholstery type: PVC
• Length (mm): 668
• Armrest: Optional
• Suspension: Mechanical
• Seat heater: Optional
• Seat contact switch: Yes
• Fore/aft isolator: Optional
• Seat type: MSG65/2731
• Seat width (mm): 570
• Lordosenstütze: Mechanical
