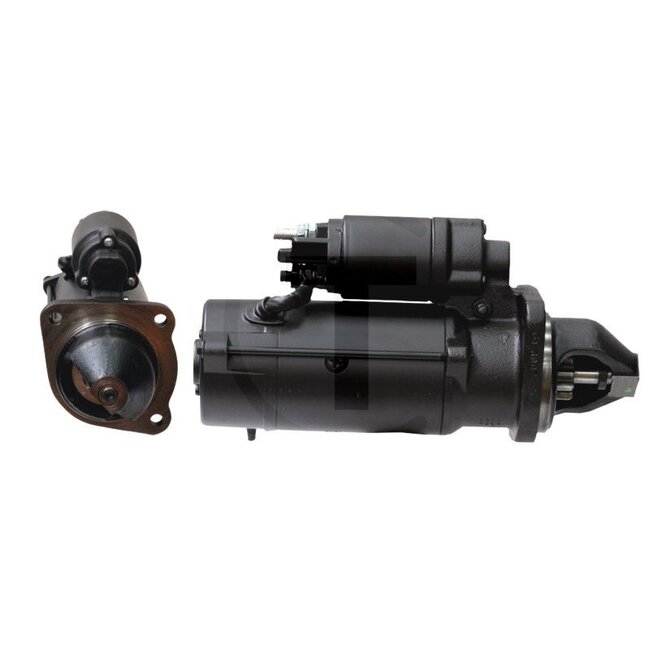

MAHLE Starter motor with reduction gear 12V 4.2 kW 10 teeth clockwise
Replaces: MS 168
Technical data:
- Nominal voltage (V): 12
- Nominal power (kW): 4.2
- No. of pinion teeth: 10
- Holes / PCD (mm): 3 x 10.9 / 127.0
- Spacing flange to flywheel (mm): 30.0
- Fitting Ø (mm): 89.0
- Installation angle (°): r 45
- Direction of rotation: clockwise
- Additional information: Pin terminal 30 21 mm, 2 drain nipple for condensation, Without scraper ring on the pinion
Suitable for:
Case IH:
New Holland:
Steyr:
