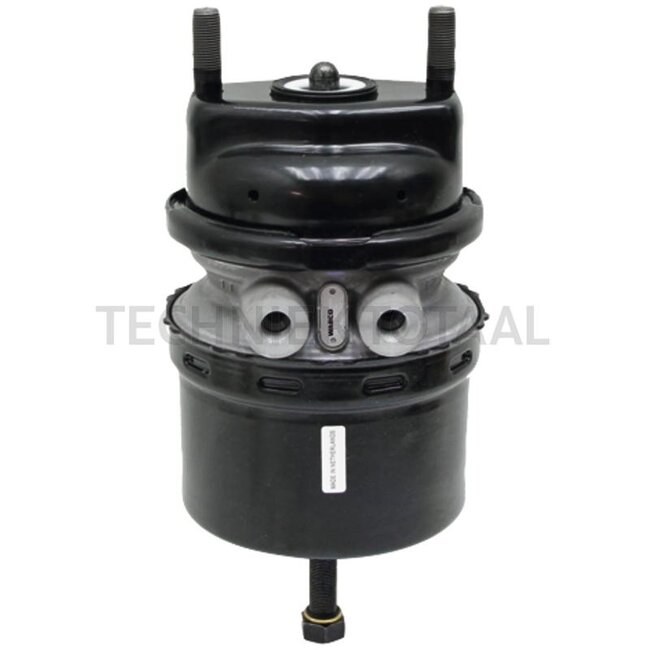

Wabco Tristop cylinder

Replaces: 94515015001, G931150071200, 9254882530

Technical data:

• Bolt thread (mm): M16
• Stroke (mm): 57/57 mm
• Combination cylinder / type: G-14/16
• Bolt thread / spacing (mm): 120,6
• H (mm): 57/57 mm
• Power output: 5160 N
• Piston rod length (mm): 15
• Release pressure (bar): 5,1
• Operating pressure max. (bar): 10.2 / 8.5 bar

Suitable for:

Fendt: Fendt 922 (Typ 919), Fendt 924 (Typ 922), Fendt 924 (Typ 941), Fendt 927 (Typ 925), Fendt 927 (Typ 942), Fendt 927 (Typ 950), Fendt 930 (Typ 928), Fendt 930 (Typ 943), Fendt 930 (Typ 951), Fendt 933 (Typ 931), Fendt 933 (Typ 944), Fendt 933 (Typ 952), Fendt 936 (Typ 934), Fendt 936 (Typ 945), Fendt 936 (Typ 953), Fendt 939 (Typ 946), Fendt 939 (Typ 954)
