TEXA UNIProbe

Lorry + OHW (4-channel oscilloscope)

Replaces: Z04220

Technical data:

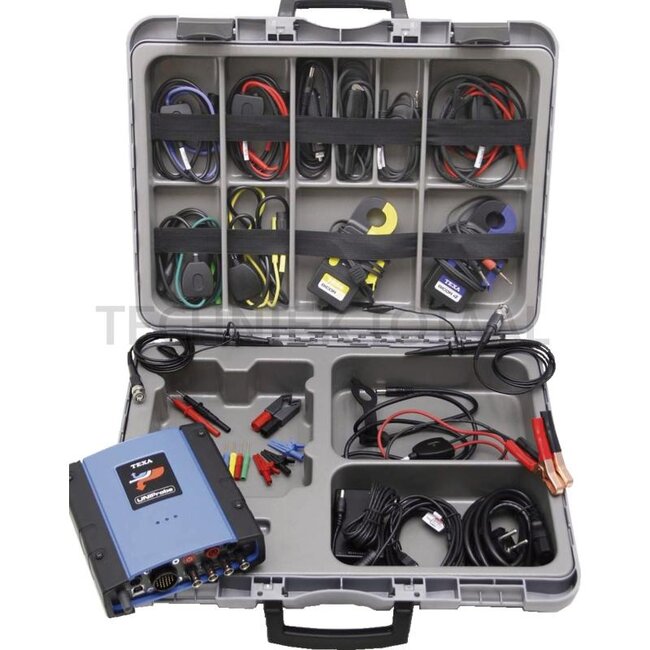

• Included in delivery: • UNIProbe (universal oscilloscope and measuring module for series Axone, Multi Pegaso or PC with a USB or Bluetooth connection) • Standard low-voltage cable • 4-channel oscilloscope • Straps for hanging the device • Software • Manual • Clamp-on ammeter BICOR3 (measurement range up to 1200 A) • Clamp-on ammeter BICOR4 (measurement range up to 30 A)
• Description: The UNIProbe provides a complete measurement system for use with motorcycles, scooters, quad bikes and watercraft, as well as light and heavy commercial vehicles, buses, special vehicles and agricultural machinery. Thanks to the Bluetooth technology, UNIProbe communicates with all display units from TEXA or with a Windows PC without requiring cables. This allows the mechanic complete freedom of movement around the vehicle and within the workshop. The device is equipped with an internal lithium battery, guaranteeing an exceptionally long service life. A highlight is the S.I.V. function (Signal Information Viewing - checks the signal information word for word), a software algorithm specially developed by TEXA for comparing the recorded data with the data stored in the internal database. This allows signal faults and deviations to be detected immediately, making the repair technician’s work much easier. UNIProbe consists of 6 different devices, all in one housing: 1. Oscilloscope: Four independent analogue channels, equipped with the SIV function for interpreting the recorded signal. 2. Battery test: For battery testing, plus analysis and monitoring of the entire starting and charging system. 3. TNET: For the electrical measurement and analysis of the data bus networks in vehicles (CAN, VAN, LIN). 4. Signal generator: To simulate the pulses generated by sensors and monitor the solenoid valves. 5. Multimeter: For measuring voltage, current (with clamp-on ammeter) and resistance. 6. Pressure test: For measuring the fuel and boost pressure in vehicles.
