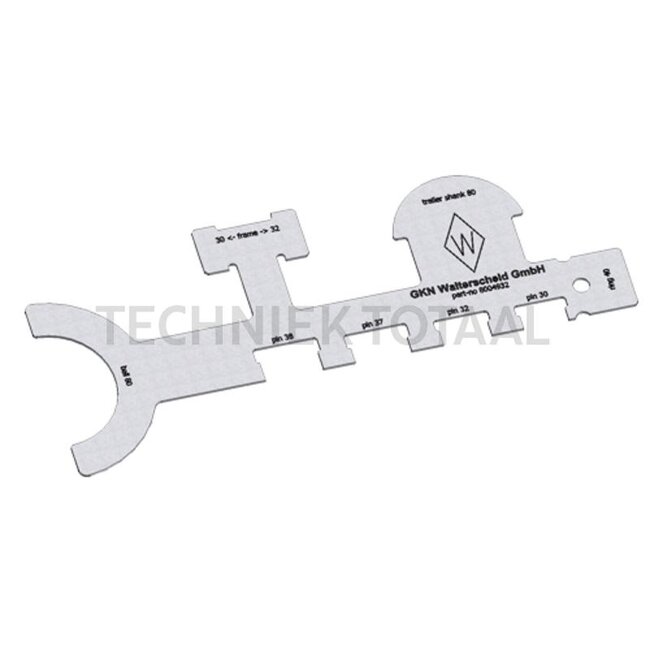

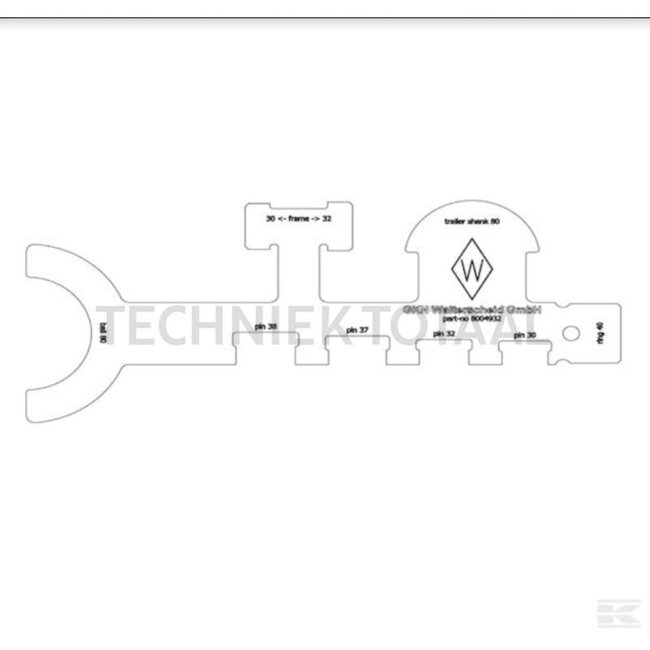

Walterscheid Universal gauge
K807KU2000/Z04
Replaces: 8004932
Technical data:
- Colour: Bare metal
- Application: - Pin coupling with coupling pin diameter 30/32/37/38 mm - Ball couplings with nominal diameter 80 mm - Hitch support guide bars with groove thickness 30/32 mm - Drawbar eyes for agriculture or forestry with bush diameter 40 mm - Cap with nominal diameter 80 mm
- Description: Universal gauge for checking the degree of wear on: 1 - Bolt hitches with hitch bolt diameter 30/32/37/38 mm 2 - Ball hitches with a nominal diameter of 80 mm 3 - Hitch support guide rails with a groove thickness of 30/32 mm 4 - Drawbar eyes with a diameter of 40 mm 5 - Spherical caps with a nominal diameter of 80 mm The test part has reached the technical wear limit when it is fully immersed in the gauge.
