Universal puller set with 2- and 3-jaw crossbars, solid and extra-slim hooks and extensions for removing bearings and gears up to 130 mm external and 170 mm internal diameter.
With 2- and 3-arm cross-beam
With rigid and slim legs and extensions
Extra slim Pulling hooks for narrow installation spaces are included for self-installation
The forged hooked feet are particularly suitable for difficult-to-access places
12 different pullers can be combined
Outside Ø up to 130 mm, inside Ø up to 170 mm with a clamping depth of 200 mm
With Check-Tool insert for quick check of tool completeness
No. 1100 CT2-1.04 for retrofitting existing L-BOXX®s 136
Technical data
Item number: 1100-1.04
EAN: 4010886939406
Number of pieces: 13
Total length: 444 mm
Total width: 360 mm
Total height: 152 mm
Weight: 7.85 kg

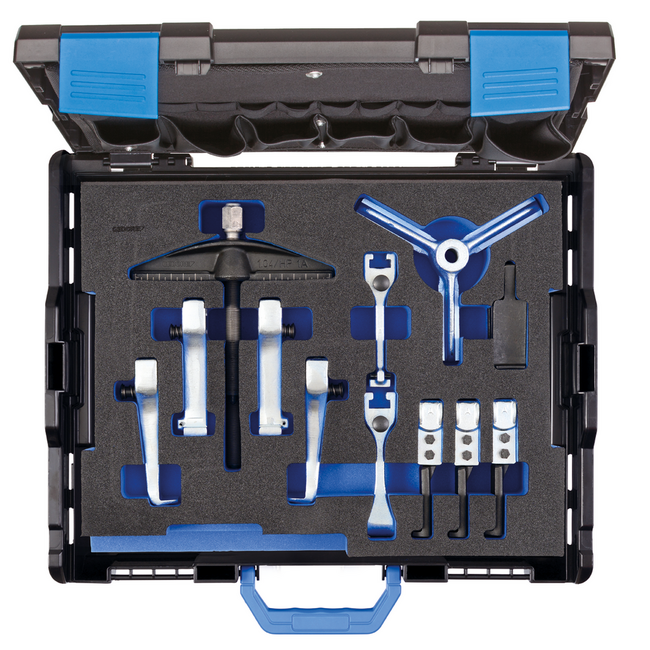

Set contents: Universal puller HIGH POWER No. 1.04/HP1A-B, 2-arm, 130x100 mm Crossbar No. 107/1A03, 3-arm 180 mm Pulling hook No. 106/A-100-B, all-steel, hook brake 100 mm 3x extension No. 106/A-100-VB with hook brake 100 mm 3x pulling hook No. 106/A-100-S, slim 100 mm 3x pulling hook No. 106/S101-S, without clamping piece Spindle No. 1.1406200, SW 17 M14x1.5 200 mm + GEDORE L-BOXX® 136 No. 1100 L
