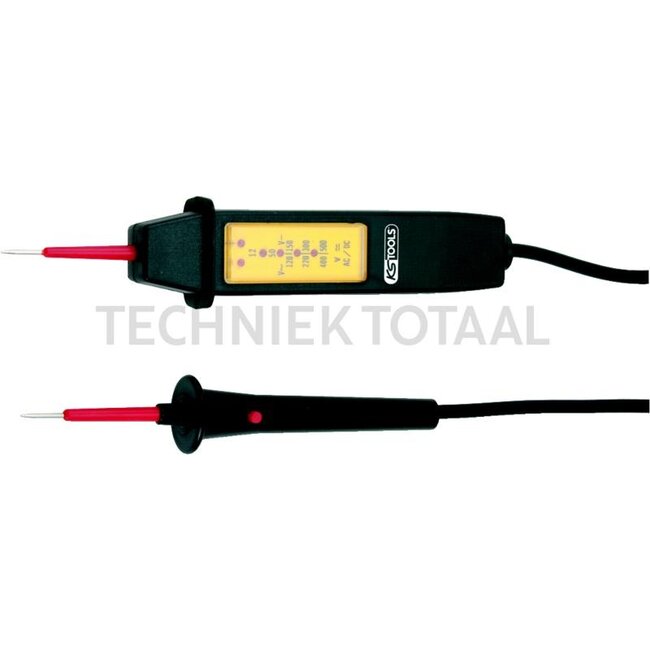

KS Tools Universal voltage tester, insulated
12 - 500 V
Replaces: 550.1502
Technical data:
- AC voltage range: 12 - 50 - 120 - 230 - 400 V Display: light-emitting diodes/LE Operating temperature: -5°C to +50°C DC voltage range: 12 - 50 - 120 - 230 - 400 V DIN 680 Frequency range: 0 - 100 Hz Weight: 180 g Test certificate: 1000V Protection class: IP40 Current consumption: 140 mA Permissible duty cycle: 30 s
- Standard: DIN ISO 0680
- Display range: 12 - 500 V
- Current requirement (A): 0,14
- Length (mm): 275
- Voltage range (V): 12 / 50 / 120 / 150 / 220 / 300 / 400 / 500 DC/AC
- Protection class: IP40
- Frequency (Hz): 0 - 100
- Description: • In accordance with DIN ISO 0680 • For AC and DC voltage • With rotating field and phase display
- Width (mm): 97
- Height (mm): 40
