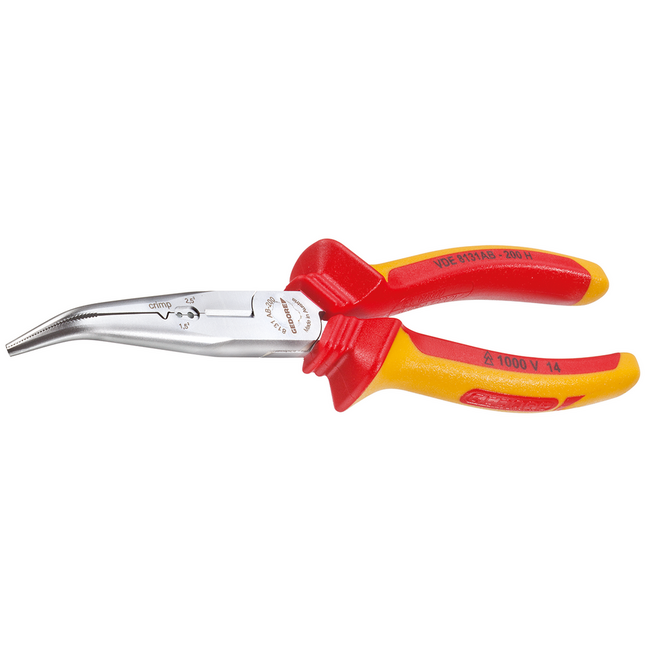

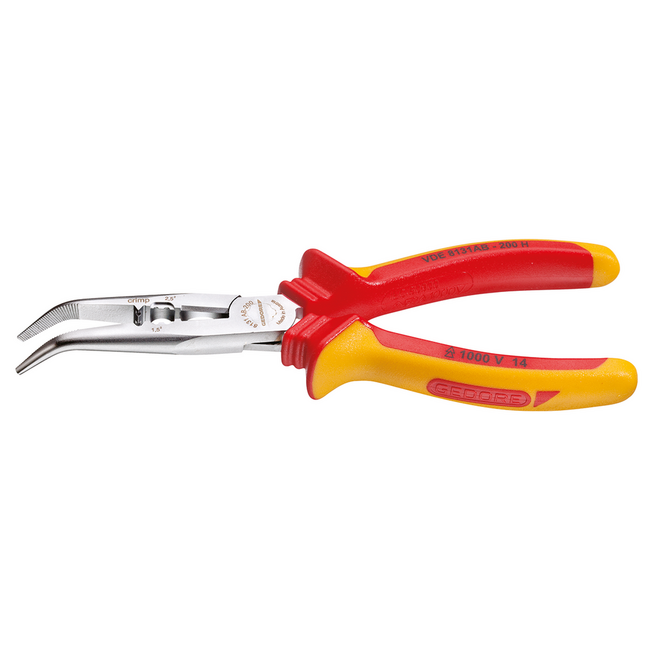

Angled VDE pliers for electricians that combine a cable cutter, wire stripper, crimping profile and serrated gripping jaws, insulated to 1000 V per IEC 60900.

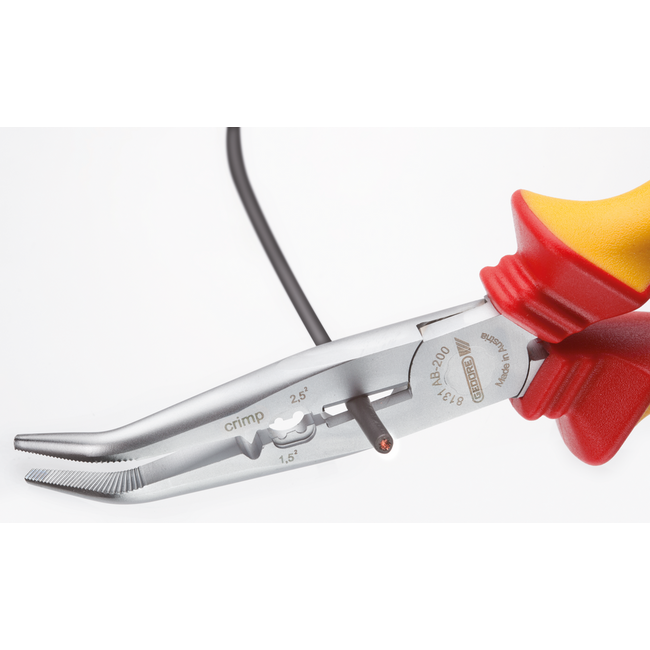

Pliers in VDE design especially designed for the needs of electricians with the following functions: Cable cutter: for easy cutting of cables up to 5x2.5 mm² or Ø 12 mm

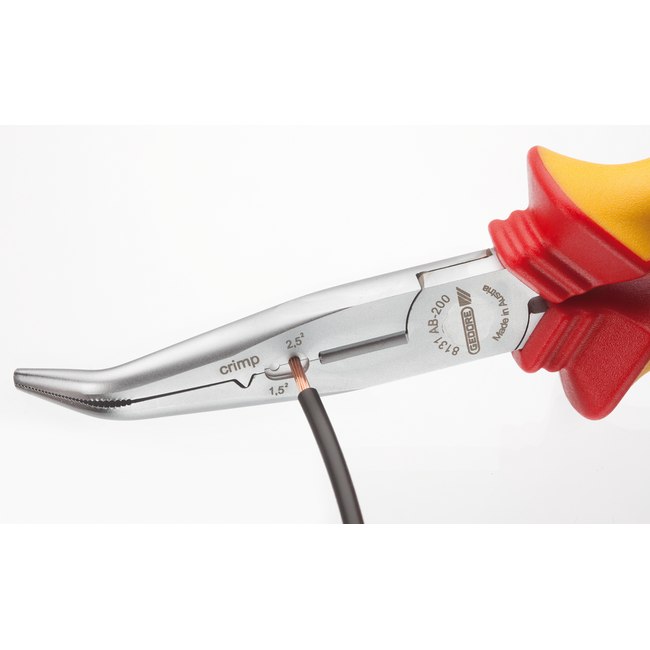

Stripping blades: Stripping option for wires 1.5 mm² and 2.5 mm²
Crimping profile: Crimping of ferrules

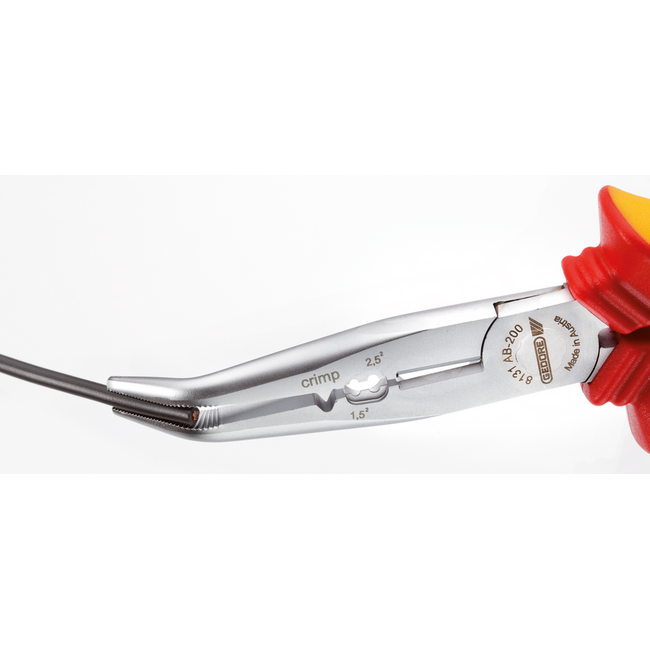

Toothed gripping face: special holding capacity when pulling cables and wires during installations
Angled plier tip: easy on the wrist and allows full view of the workpiece
Space-saving in the pocket, only one tool is needed
Legs VDE insulated up to 1000 V, in accordance with DIN EN IEC 60900, cover insulation
Technical data
Item number: VDE 8131 AB-200 H
EAN: 4010886945209
Total length: 200 mm
Weight: 0.245 kg
1000 V insulated: yes
VDE certified: yes
Material: Heat-treated steel
Surface: chrome-plated
Standard: similar to DIN ISO 5745 EN 60900/IEC60900
Handle design: 2-component grips VDE insulated up to 1000 V
Cutting values: Hard wire: 1.6 mm / 14 AWG Medium hard wire: 3 mm / 9 AWG Cu cable, multi wire cross section: 5x2.5 mm² Multi-wire cable Ø: 12 mm
