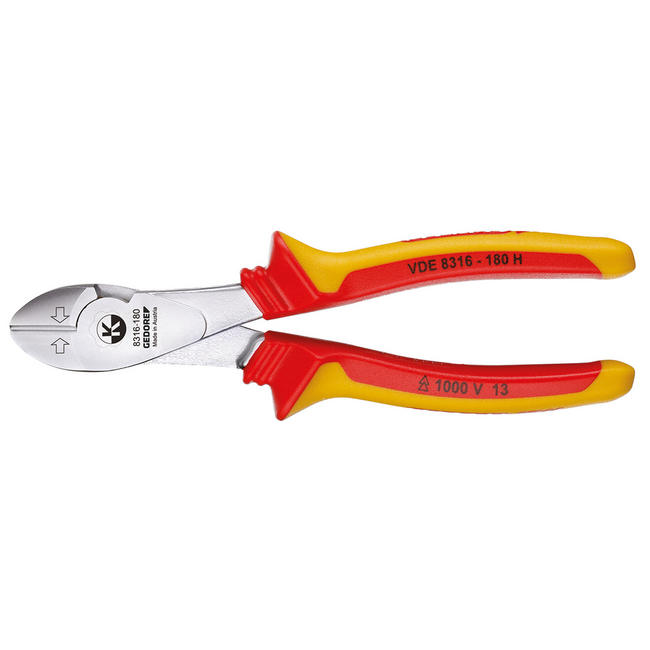

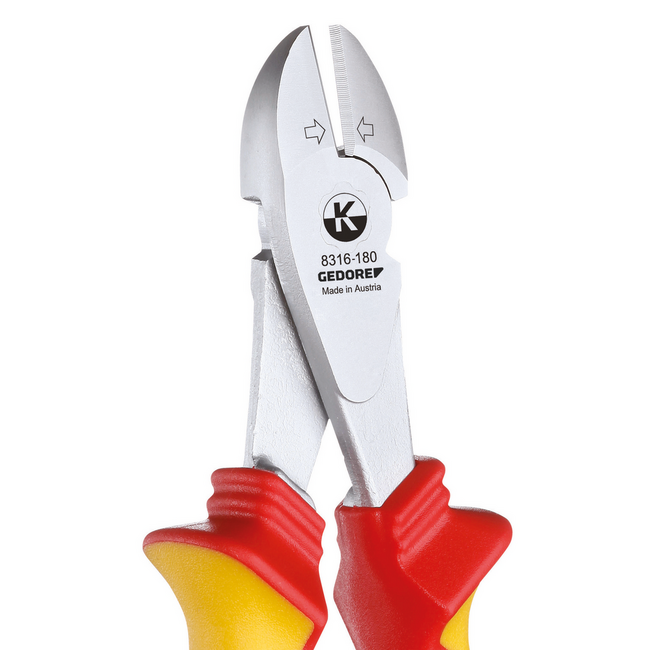

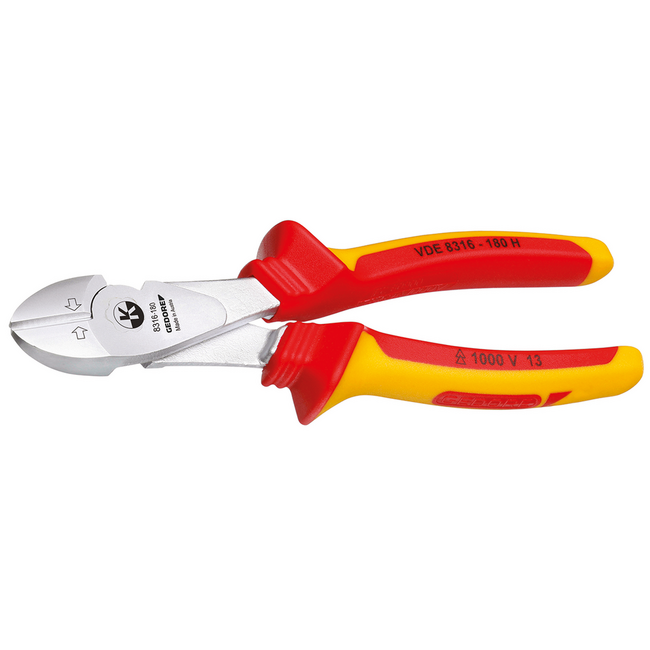

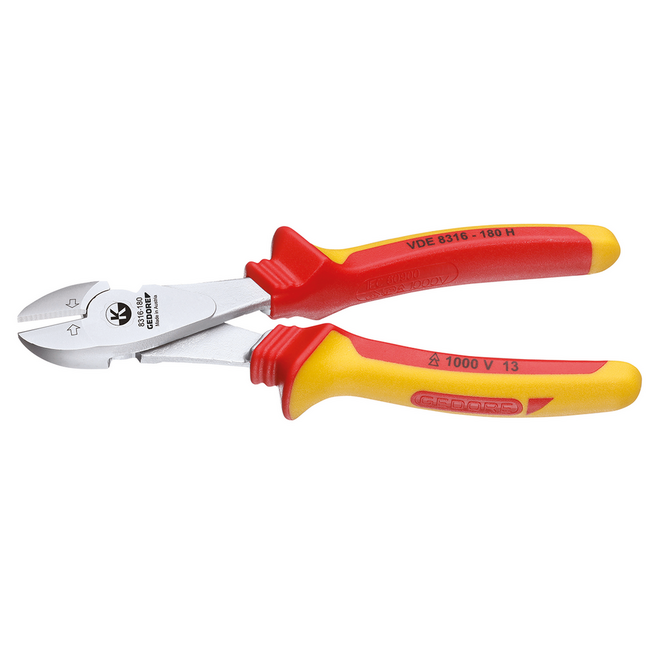

Heavy-duty 180 mm VDE diagonal cutters with high leverage and induction-hardened edges, sleeve-insulated to IEC 60900 for work up to 1000 V.

• High leverage for easier work
• Induction-hardened precision cutting edges, hardness 63 - 65 HRC
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Handles with VDE insulating sleeves up to 1000 V, acc. to EN 60900/IEC 60900

Technical data

• Item number: VDE 8316-180 H
• EAN: 4010886816103
• Total length: 180 mm
• Total width: 55 mm
• Total height: 27 mm
• Weight: 0.267 kg
• 1000 V insulated: yes
• VDE certified: yes
• Material: Heat-treated steel
• Width of head 1: 26 mm
• Surface: chrome-plated
• Head height 1: 22.6 mm
• Standard: DIN ISO 5749 EN 60900/IEC60900
• Handle design: 2-component grips VDE insulated up to 1000 V
• Cutting edge length: 22.6 mm
• Cutting values: Piano wire: 1.8 mm / 13 AWG Hard wire: 2.7 mm / 10 AWG Medium hard wire: 3.8 mm / 7 AWG
• Hardness of cutting edge: 63-65 HRC
• Blade shape: with facet
• Head Thickness T1: 11 mm
• Hardening process: Induction hardened
• Bevel: with
