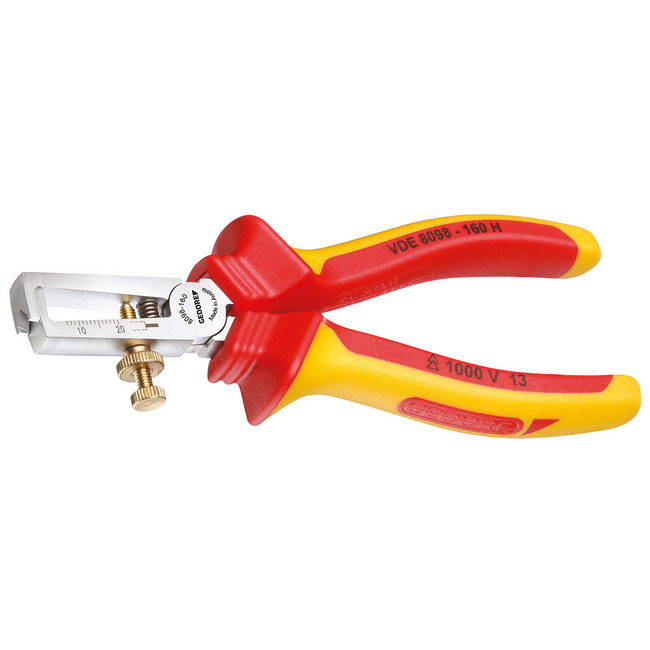

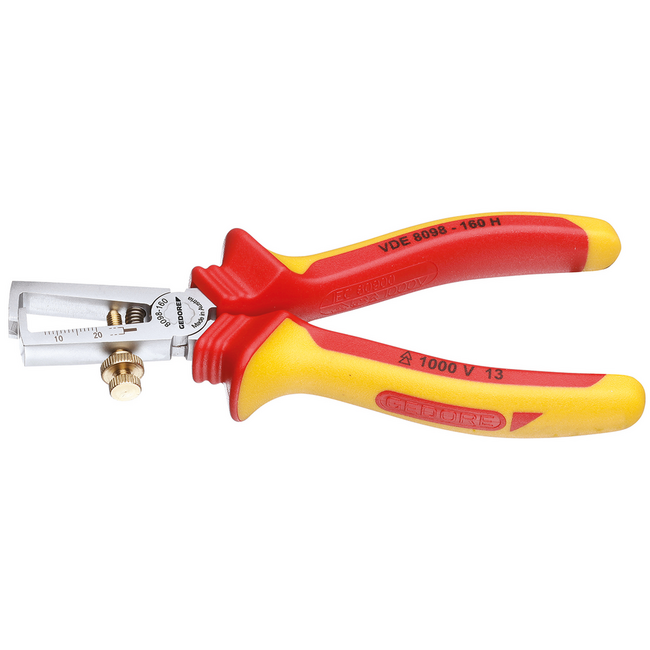

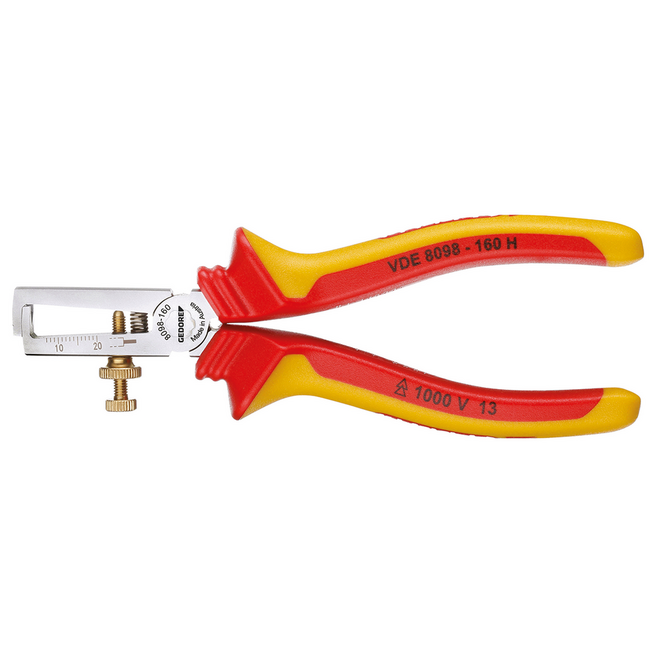

Self-opening 160 mm VDE wire stripping pliers with V-shaped blades for solid and stranded cable, adjustable with a set screw and insulated to 1000 V.

• Opens automatically, with spring and adjusting screw
• V-shaped cutting jaws for stripping single and multi-wire conductors with plastic insulation

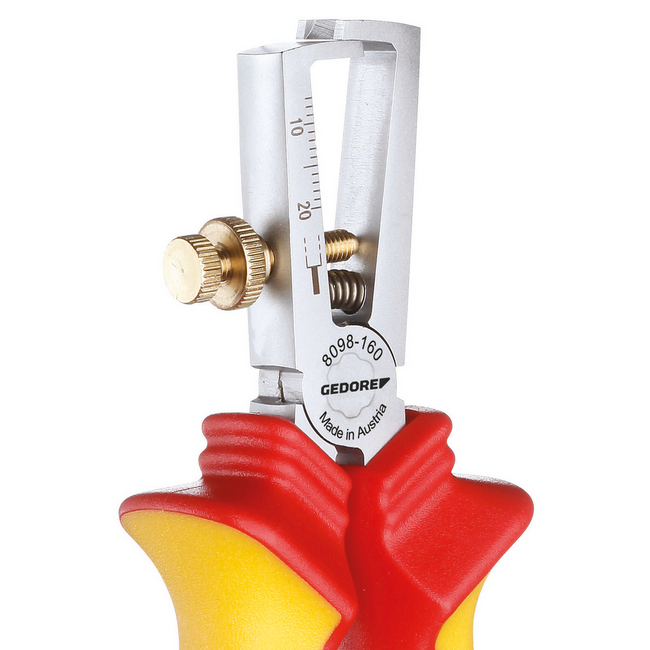

• Easy adjustment to the required wire or strand diameter by means of the set screw and lock nut
• For wires from 0.8 to 6.0 mm²
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Legs VDE insulated up to 1000 V, in accordance with DIN EN IEC 60900, cover insulation

Technical data

• Item number: VDE 8098-160 H
• EAN: 4010886815977
• Total length: 160 mm
• Total width: 52 mm
• Total height: 27 mm
• Weight: 0.204 kg
• 1000 V insulated: yes
• VDE certified: yes
• Material: Heat-treated steel
• Width of head 1: 18.5 mm
• Surface: chrome-plated
• Standard: EN 60900/IEC60900
• Handle design: 2-component grips VDE insulated up to 1000 V
• Cable cross section: 0.5-10.0 mm
• Jaw length L3: 43.5 mm
• Joint types: inserted joint
• Head Thickness T1: 8.5 mm
