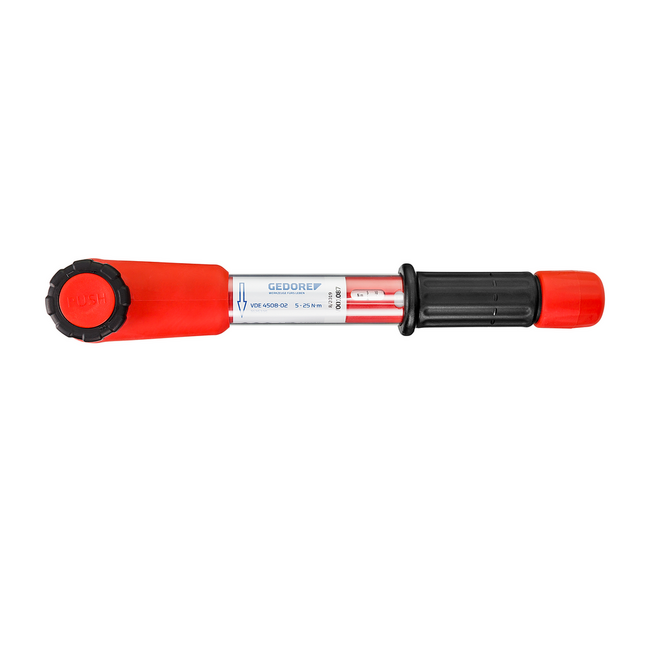

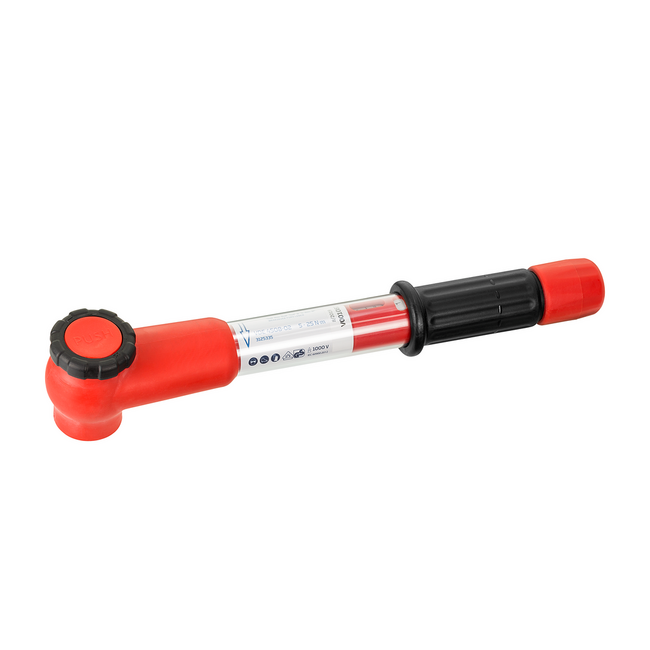

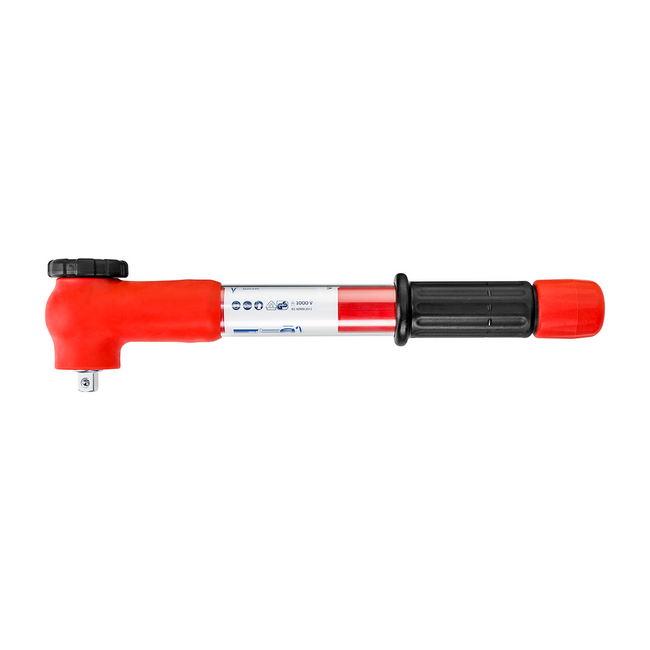

Click-type torque wrench insulated to 1000 V with a fine-tooth 3/8" ratchet for 5 to 25 Nm, for controlled tightening on live electrical installations.

• Controlled screw tightening in the most widely used range
• Release system triggers a tactile and audible signal
• Scale with Nm division
• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
• Recalibration without destroying the insulation
• Fine toothed ratchet with square drive as per DIN 3120, ISO 1174
• Safety button to protect against accidental release of the insert, VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900

Technical data

• Item number: VDE 4508-02
• EAN: 4002805937303
• Total length: 319 mm
• Total width: 48 mm
• Total height: 75 mm
• Weight: 0.714 kg
• 1000 V insulated: yes
• Width of head 1: 50 mm
• Target groups: Automotive Electronics industry Industry Military Energy Workshop Utilities Service Control cabinet construction
• Head height 1: 62 mm
• Square drive: 3/8 Inch
• Square drive: 10 mm
• Range of application: Assembly Production Maintenance and repair
• Torque (min.): 25 Nm
• Return angle: 5 Grad
• Number of teeth: 72
• Drive type/drive: Reversible ratchet
• Torque (min.): 5 Nm
• Distance housing - square drive: 24 mm
• Scale type: Mono
• Precision +/-: +/- 4 percent
• Tightening direction: right
• Test certificate: DIN EN ISO 6789-2:2017
• Vernier Nm: 0.1 Nm
• Graduation: 1
• Fuse output square drive: Ball safety device
• Torque range (min./max.): 5-25 Nm
• Trigger mechanism: Short path triggering
• Storage/Content: Plastic Storage Box
• Calibration length: 229 mm
